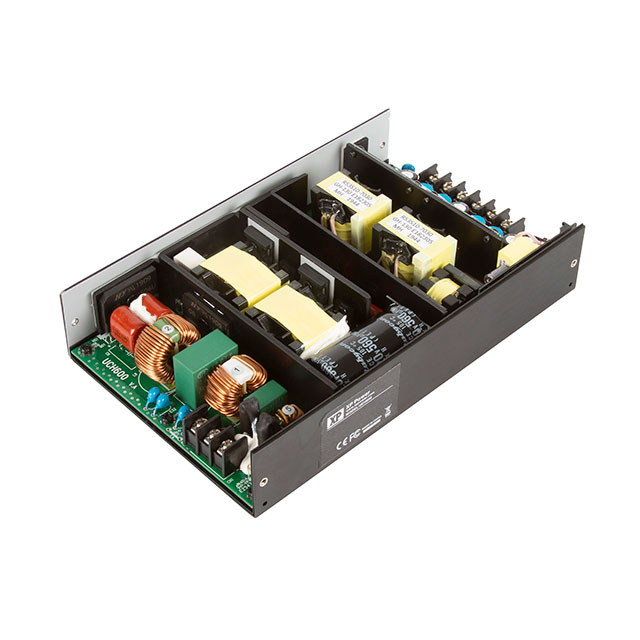

UCH600 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 36V 598W
| Part | Minimum Load Required | Type | Current - Output 1 | Number of Outputs | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Approval Agency | Voltage - Isolation | Efficiency | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Standard Number | Voltage - Output 1 [custom] | Features | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | Open Frame | 16.6 A | 1 | 598 W | 70 °C | -20 °C | Chassis Mount | 40 mm | 5 in | 203.2 mm | 5 in | 8 in | 1.57 " | CB CE TUV UL | 4000 V | 95 % | ITE (Commercial) Medical | 264 VAC | 90 VAC | 62368-1 | 36 V | Adjustable Output PFC Remote On/Off Standby Output Universal Input | ||
XP Power | Open Frame | 25 A | 1 | 600 W | 70 °C | -20 °C | Chassis Mount | 40 mm | 5 in | 203.2 mm | 5 in | 8 in | 1.57 " | CB CE TUV UL | 4000 V | 95 % | ITE (Commercial) Medical | 264 VAC | 90 VAC | 62368-1 | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 24 V | ||
XP Power | Open Frame | 50 A | 1 | 600 W | 70 °C | -20 °C | Chassis Mount | 40 mm | 5 in | 203.2 mm | 5 in | 8 in | 1.57 " | CB CE TUV UL | 4000 V | 93 % | ITE (Commercial) Medical | 264 VAC | 90 VAC | 62368-1 | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 12 V |
