LSQBB1608 Series

Catalog

INDUCTOR GENERAL PURPOSE WIREWOUND 1UH 20% 7.96MHZ FERRITE 0.23A 0.117OHM DCR 0603 T/R

Part	Material - Core	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Package / Case	Frequency - Self Resonant	Shielding	Tolerance	Current Rating (Amps)	Inductance	Mounting Type
Taiyo Yuden LSQBB160808T1R0M	Ferrite	7.96 MHz	0.031 in	1.6 mm	0.8 mm	0.063 "	90 mOhm	0.039 in	1 mm	-40 C	105 ░C	Wirewound	1608 Metric	0603	100 MHz	Unshielded	20 %	0.23 A	1 µH	Surface Mount

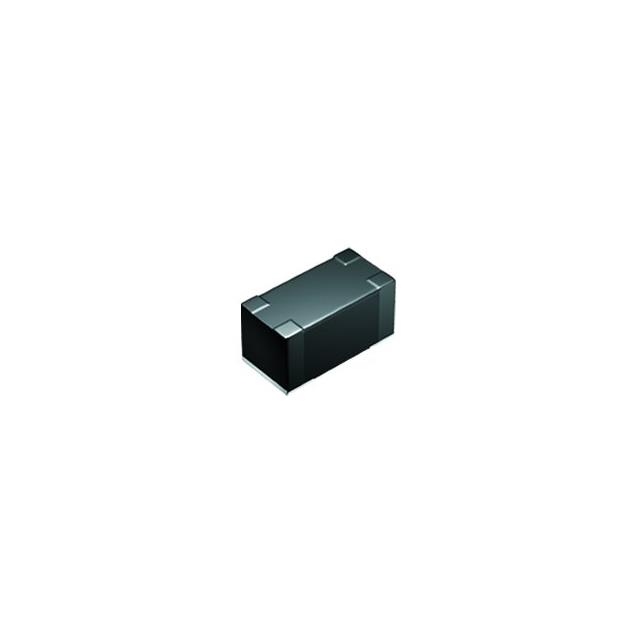

Taiyo Yuden LSQBB160808T100K	Ferrite	2.52 MHz	0.031 in	1.6 mm	0.8 mm	0.063 "	360 mOhm	0.039 in	1 mm	-40 C	105 ░C	Wirewound	1608 Metric	0603	32 MHz	Semi-Shielded Unshielded	10 %	80 mA	10 µH	Surface Mount
Taiyo Yuden LSQBB160808T3R3M	Ferrite	7.96 MHz	0.031 in	1.6 mm	0.8 mm	0.063 "	220 mOhm	0.039 in	1 mm	-40 C	105 ░C	Wirewound	1608 Metric	0603	60 MHz	Unshielded	20 %	130 mA	3.3 µH	Surface Mount
Taiyo Yuden LSQBB160808T4R7M	Ferrite	7.96 MHz	0.031 in	1.6 mm	0.8 mm	0.063 "	240 mOhm	0.039 in	1 mm	-40 C	105 ░C	Wirewound	1608 Metric	0603	45 MHz	Unshielded	20 %	110 mA	4.7 ÁH	Surface Mount
