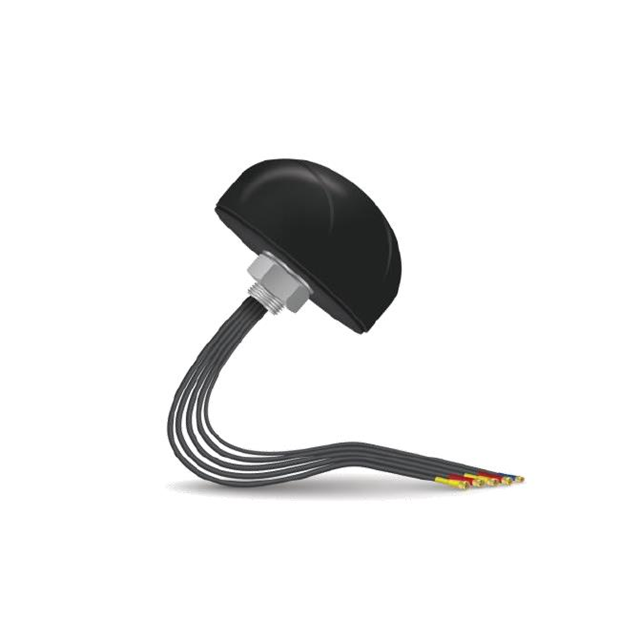

X1005324 Series
Manufacturer: KYOCERA AVX
Beta
⌘K
ANTENNA GNSS / LTE MIMO / WIFI
| Part | Gain | Frequency (Center/Band) | Features | Antenna Type | Mounting Type | Frequency Group | Number of Bands | Frequency Range [Max] | Frequency Range [Min] | VSWR | Applications | Ingress Protection | RF Family/Standard | Termination | Height (Max) [z] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 3 dBi 3.5 dBi 3.8 dBi 4.1 dBi 4.6 dBi 4.9 dBic 6.6 dBi | 1.561 GHz 1.575 GHz 1.602 GHz 1.94 GHz 2.45 GHz 2.495 GHz 5.4875 GHz 829 MHz | Cable - 1m LNA | Dome | Adhesive | Wide Band | 8 | 2.17 GHz 2.5 GHz 2.69 GHz 5.825 GHz 960 MHz | 1.71 GHz 2.3 GHz 2.4 GHz 5.15 GHz 698 MHz | 1.8 2 3.5 | GLONASS GNSS GPS LTE Wi-Fi | IPX7 | Cellular Navigation WiFi | RP-SMA Male (1) SMA Male (2) | 63.5 mm | 2.5 in |
