325-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K

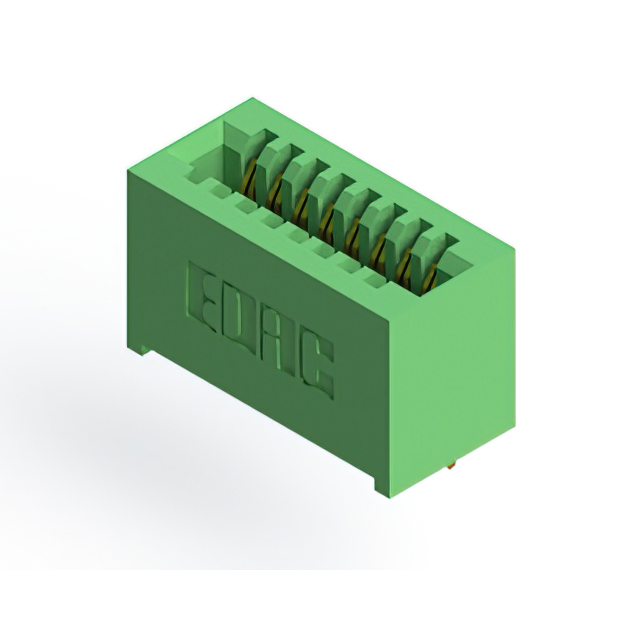

CONN EDGE SINGLE FML 8POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Finish | Number of Positions/Bay/Row | Termination | Color | Mounting Type | Gender | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Material | Number of Positions | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Thickness | Card Thickness | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Gold | 8 | Solder Eyelet(s) | Green | Through Hole | Female | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | 8 | Cantilever | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 3.18 mm | 0.125 in | Non Specified - Single Edge | -65 ░C | 125 °C | 0.1 " | 2.54 mm |
