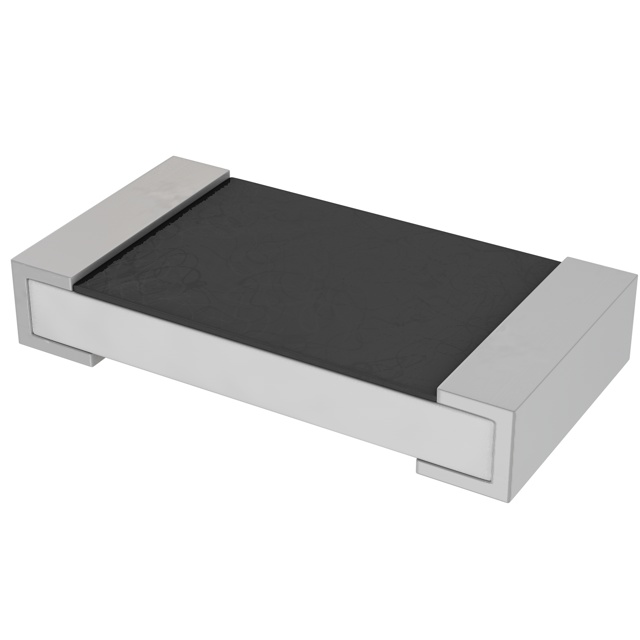

RL Series

Manufacturer: YAGEO

Catalog

CURRENT SENSE RESISTORS - SMD 150 MOHMS 62.5MW 1 % 800 PPM/C

Part	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Composition	Number of Terminations [custom]	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Temperature Coefficient	Power (Watts)	Power (Watts)	Supplier Device Package	Features	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case	Size / Dimension [y]	Power (Watts)	Supplier Device Package
YAGEO RL0402FR-070R15L	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Thick Film	2	0.15 Ohms	155 C	-55 C	1 %	800 ppm/°C	0.063 W	0.0625 W	0402	Current Sense	0.016 in	0.4 mm
YAGEO RL0805FR-070R14L	0805	0.049 "	1.25 mm	0.079 in	2 mm	Thick Film	2	0.14 Ohms	155 C	-55 C	1 %	600 ppm/°C	0.125 W	0.125 W	0805	Current Sense	0.024 in		0.6 mm
YAGEO RL0805JR-7W0R047L	0805	0.049 "	1.25 mm	0.079 in	2 mm	Thick Film	2	47 mOhms	125 °C	-55 C	5 %	1200 ppm/°C	0.25 W	0.25 W	0805	Current Sense	0.024 in		0.6 mm
YAGEO RL0603FR-070R49L	0603	0.031 in		0.063 "	1.6 mm	Thick Film	2	490 mOhms	155 C	-55 C	1 %	800 ppm/°C	0.1 W	0.1 W		Current Sense	0.022 in		0.55 mm	1608 Metric	0.8 mm
YAGEO RL2010JK-070R082L	2010 (5125 Metric)	0.098 in	2.5 mm	0.197 in	5 mm	Thick Film	2	0.082 Ohms	155 C	-55 C	5 %	1000 ppm/°C	0.75 W			Current Sense	0.026 in		0.65 mm			3/4W	2010
YAGEO RL0805FR-7W0R249L	0805	0.049 "	1.25 mm	0.079 in	2 mm	Thick Film	2	249 mOhms	125 °C	-55 C	1 %	600 ppm/°C	0.25 W	0.25 W	0805	Current Sense	0.024 in		0.6 mm
YAGEO RL1206JR-7W0R82L	1206 (3216 Metric)	0.063 "	1.6 mm	0.122 "	3.1 mm	Thick Film	2	820 mOhms	125 °C	-55 C	5 %	200 ppm/°C	0.5 W	0.5 W	1206	Current Sense	0.026 in		0.65 mm
YAGEO RL1206FR-070R015L	1206 (3216 Metric)	0.063 "	1.6 mm	0.122 "	3.1 mm	Thick Film	2	15 mOhms	155 C	-55 C	1 %	1500 ppm/°C	0.25 W	0.25 W	1206	Current Sense	0.026 in		0.65 mm
YAGEO RL2512JK-070R22L	2512	0.126 in		0.25 in	6.35 mm	Thick Film	2	220 mOhms	155 C	-55 C	5 %	600 ppm/°C	1 W			Current Sense	0.026 in		0.65 mm	6332 Metric	3.2 mm		2512
YAGEO RL1210FR-070R091L	1210	0.102 in	2.6 mm	0.122 "	3.1 mm	Thick Film	2	91 mOhms	155 C	-55 C	1 %	800 ppm/°C	0.5 W	0.5 W	1210	Current Sense	0.026 in		0.65 mm	3225 Metric
