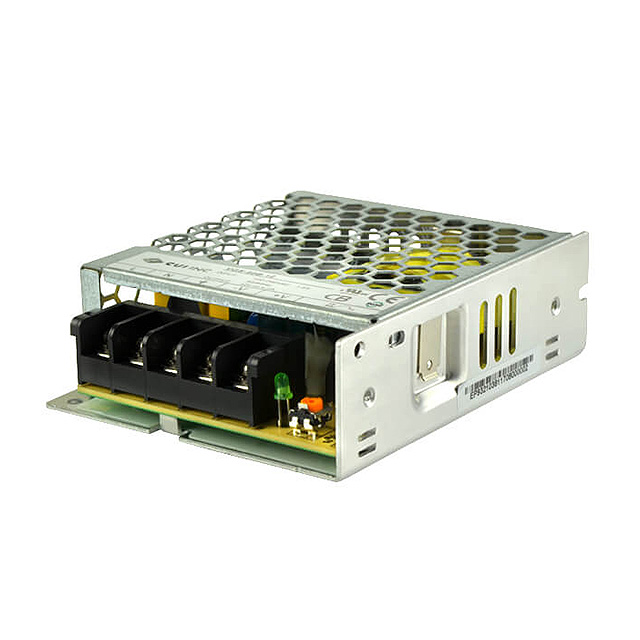

VGS-50B Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 48V 53W
| Part | Features | Mounting Type | Standard Number | Efficiency | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Current - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Approval Agency | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Adjustable Output Universal Input | Chassis Mount | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 88 % | 53 W | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1.1 A | 264 VAC | 90 VAC | 48 V | CB Scheme EN FCC IEC SIQ TUV UL | 1.5 kV | 70 °C | -20 °C | 1 | Enclosed | ITE (Commercial) |
CUI Inc. | Adjustable Output Universal Input | Chassis Mount | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 85 % | 50 W | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 4.2 A | 264 VAC | 90 VAC | 12 V | CB Scheme EN FCC IEC SIQ TUV UL | 1.5 kV | 70 °C | -20 °C | 1 | Enclosed | ITE (Commercial) |
