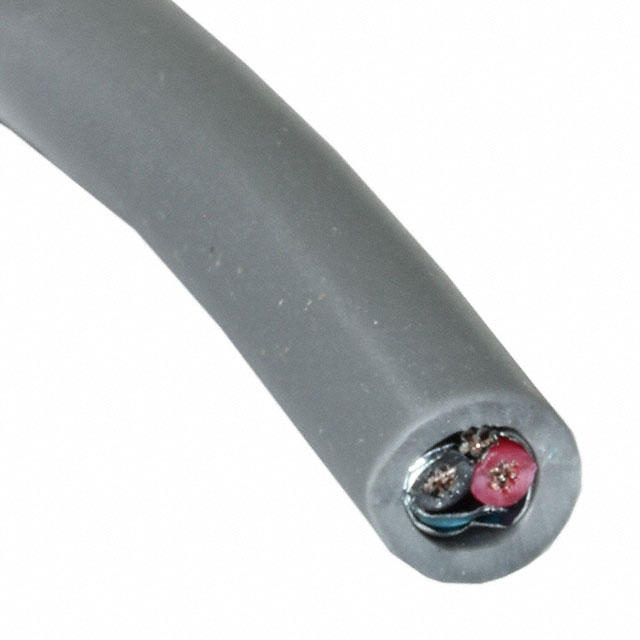

9462 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 1 PAIR, 22 AWG, 0.35 MM², 500 FT, 152.4 M
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket Color | Cable Type | Conductor Material | Jacket (Insulation) Material | Number of Conductors | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Length | Length | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Voltage | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 0.186 " | 4.72 mm | Foil | Chrome | Multi-Conductor | Copper Tinned | Poly-Vinyl Chloride (PVC) | 2 | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 0.035 in | 0.889 mm | Drain Wire | 152.4 m | 500 ft | 22 AWG | 80 °C | -30 ░C | Audio Control Instrumentation | ||
 Belden Inc. | Aluminum | 100 % | 0.186 " | 4.72 mm | Foil | Chrome | Multi-Conductor | Copper Tinned | Poly-Vinyl Chloride (PVC) | 2 | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 0.035 in | 0.889 mm | Drain Wire | 152.4 m | 500 ft | 22 AWG | 80 °C | -30 ░C | Audio Control Instrumentation | 300 VDC | UL Style 2464 |
