P4SP Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS P4SP BOARD TO B

Part	Number of Rows [custom]	Connector Type	Contact Finish	Pitch	Pitch	Mounting Type	Features	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mated Stacking Heights
Panasonic Electronic Components AXF5G8012	2	Socket Outer Shroud Contacts	Gold	0.4 mm	0.016 in	Surface Mount	Solder Retention	1.45 mm	0.057 in	80	1.5 mm
Panasonic Electronic Components AXF5G2612	2	Socket Outer Shroud Contacts	Gold	0.4 mm	0.016 in	Surface Mount	Solder Retention	1.45 mm	0.057 in	26	1.5 mm
Panasonic Electronic Components AXF5G4012	2	Socket Outer Shroud Contacts	Gold	0.4 mm	0.016 in	Surface Mount	Solder Retention	1.45 mm	0.057 in	40	1.5 mm
Panasonic Electronic Components AXF6G8012	2	Header Center Strip Contacts	Gold	0.4 mm	0.016 in	Surface Mount	Solder Retention	1.25 mm	0.049 in	80	1.5 mm
Panasonic Electronic Components AXF5G0022	2	Socket Outer Shroud Contacts	Gold	0.4 mm	0.016 in	Surface Mount	Solder Retention	2.45 mm	0.096 in	100	2.5 mm

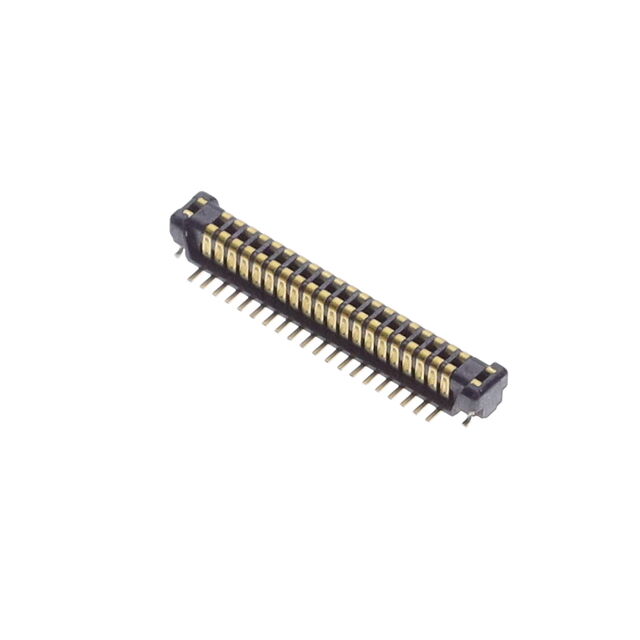

Panasonic Electronic Components AXF6G4012A	2	Header Center Strip Contacts Header Outer Shroud Contacts	Gold	0.4 mm	0.016 in	Surface Mount	Solder Retention	1.25 mm	0.049 in	40	1.5 mm
Panasonic Electronic Components AXF6G3012	2	Header Center Strip Contacts	Gold	0.4 mm	0.016 in	Surface Mount	Solder Retention	1.25 mm	0.049 in	30	1.5 mm
Panasonic Electronic Components AXF6G7012	2	Header Center Strip Contacts Header Outer Shroud Contacts	Gold	0.4 mm	0.016 in	Surface Mount	Solder Retention	1.25 mm	0.049 in	70	1.5 mm
