27RV Series

Catalog

REVERSE LOCK PCB SUPPORT, .125/.

Part	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Material	Holding Type	Between Board Height	Between Board Height	Mounting Type	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Between Board Height

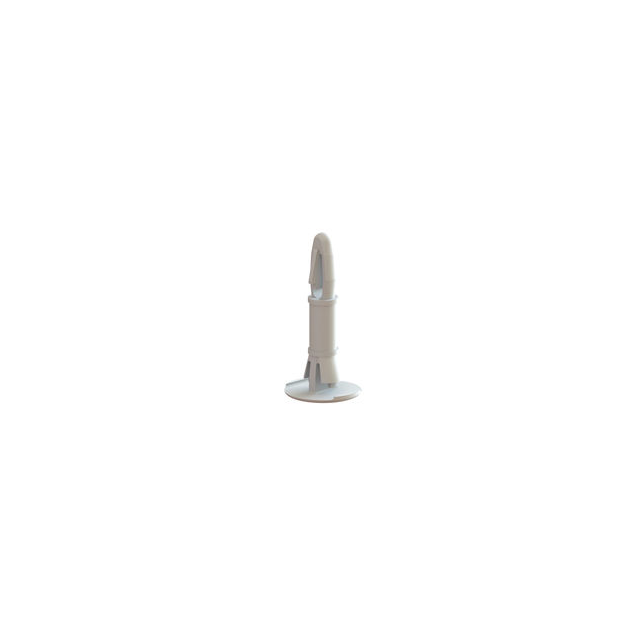

Essentra Components 27RV00500A	0.125 in	0.125 in	3.18 mm	Nylon	Snap Lock	12.7 mm	0.5 in	Snap Lock	1.6 mm	0.063 in	0.059 "	1.5 mm	1.6 mm	1.5 mm	0.059 in	0.063 in	0.1875 in	0.187 in	4.75 mm
Essentra Components 27RV00375	0.125 in	0.125 in	3.18 mm	Nylon	Snap Lock	9.53 mm	0.375 in	Snap Lock	1.6 mm	0.063 in	0.059 "	1.5 mm	1.6 mm	1.5 mm	0.059 in	0.063 in	0.1875 in	0.187 in	4.75 mm	0.375 "
Essentra Components 27RV00250	0.125 in	0.125 in	3.18 mm	Nylon	Snap Lock	0.25 in	6.35 mm	Snap Lock	1.6 mm	0.063 in	0.059 "	1.5 mm	1.6 mm	1.5 mm	0.059 in	0.063 in	0.1875 in	0.187 in	4.75 mm
