50.4-HF Series

Catalog

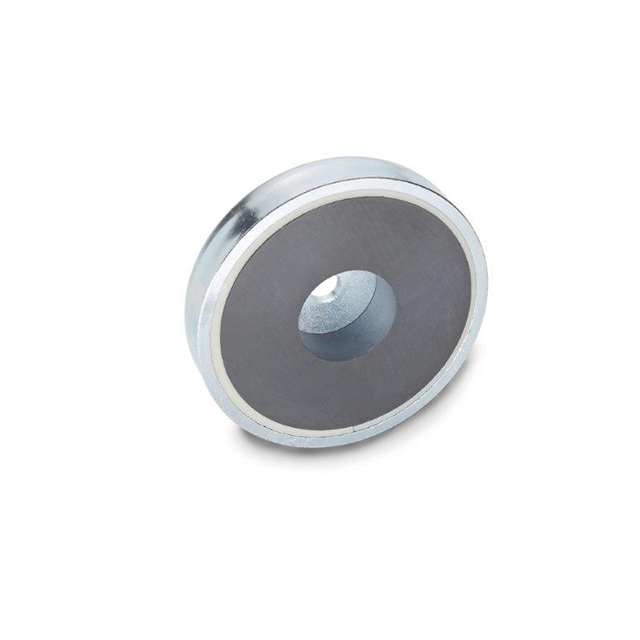

MAGNET 3.150"D X 0.709"THICK RND

Part	Operating Temperature	Shape	Material	Size [diameter]	Size [diameter]	Size [z]	Size [z]	Finish	Size [z]
J.W. Winco 50.4-HF-80-18-6.5	200 °C	Round	Ferrite	80 mm	3.15 in	0.709 in	18 mm	Steel Zinc
J.W. Winco 50.4-HF-32-7-5.5	200 °C	Round	Ferrite	32 mm	1.26 in	0.276 in	7 mm	Steel Zinc
J.W. Winco 50.4-HF-63-14-6.5	200 °C	Round	Ferrite	63 mm	2.48 in	0.551 "	14 mm	Steel Zinc
J.W. Winco 50.4-HF-25-7-5.5	200 °C	Round	Ferrite	25 mm	0.984 in	0.276 in		Steel Zinc	7 mm
J.W. Winco 50.4-HF-20-6-4.3	200 °C	Round	Ferrite	20 mm	0.787 "	0.236 "	6 mm	Steel Zinc
J.W. Winco 50.4-HF-50-10-8.5	200 °C	Round	Ferrite	50 mm	1.969 in	0.394 "	10 mm	Steel Zinc
J.W. Winco 50.4-HF-100-22-10.5	200 °C	Round	Ferrite	100 mm	3.937 in	0.866 in	22 mm	Steel Zinc
J.W. Winco 50.4-HF-40-8-5.5	200 °C	Round	Ferrite	40 mm	1.575 "	0.315 in	8 mm	Steel Zinc
J.W. Winco 50.4-HF-16-4.5-3.5	200 °C	Round	Ferrite	16 mm	0.63 in	0.177 in	4.5 mm	Steel Zinc
