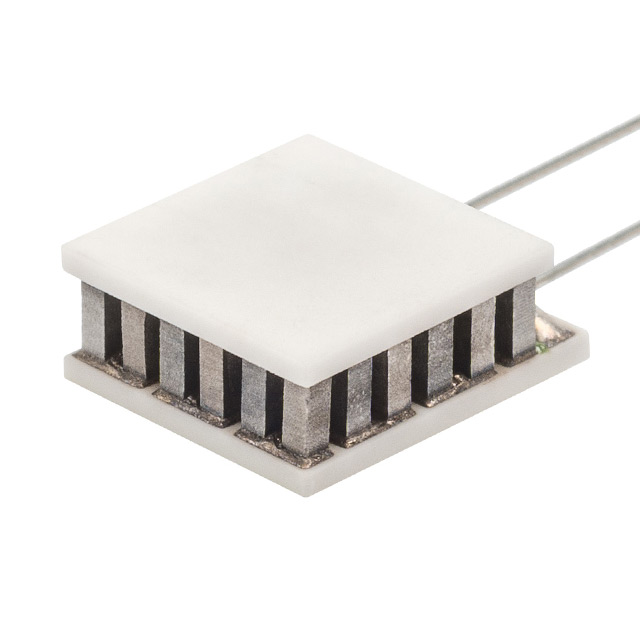

430779 Series

Catalog

PELTIR OT12,18,F2A,0606,11,W2.25

Part	Number of Stages	Operating Temperature	Features	Current - Max [Max]	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Height	Resistance	Voltage - Max [Max]	Height [z]
Laird Thermal Systems, Inc. 430779-501	1	80 °C	Lead Wires Non-Sealed	1.2 A	1.5 W	7.2 mm	6 mm	67 °C	2.69 mm	1.57 Ohms	2.1 V
Laird Thermal Systems, Inc. 430779-503	1	80 °C	Lead Wires Sealed - Silicone RTV	1.2 A	1.5 W	7.2 mm	6 mm	67 °C	2.69 mm	1.57 Ohms	2.1 V

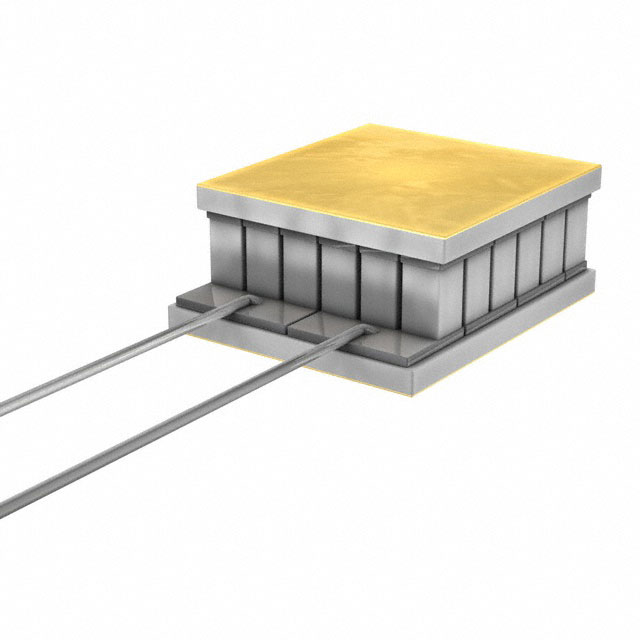

Laird Thermal Systems, Inc. 430779-502	1	80 °C	Lead Wires Non-Sealed	1.2 A	1.5 W	7.2 mm	6 mm	67 °C		1.57 Ohms	2.1 V	3.07 mm
