SN65LVPE512 Series

2nd generation dual channel USB 3.0 redriver

Catalog

2nd generation dual channel USB 3.0 redriver

Part	Delay Time	Number of Channels [custom]	Data Rate (Max)	Supplier Device Package	Signal Conditioning	Type	Mounting Type	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance - Input	Applications	Input	Package / Case	Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplied Contents	Function	Primary Attributes	Utilized IC / Part	Embedded
Texas Instruments SN65LVPE512RGER	305 ps	2	5 Gbps	24-VQFN (4x4)	Input Equalization Output De-Emphasis	Buffer ReDriver	Surface Mount	100 mA	85 °C	-40 °C	1.25 pF	USB 3.0	CML	24-VFQFN Exposed Pad	CML	3.6 V	3 V

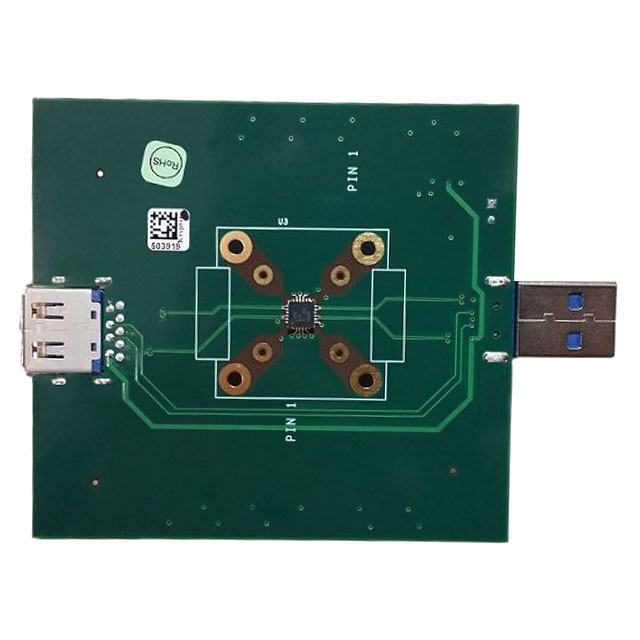

Texas Instruments SN65LVPE512EVM						Interface												Board(s)	Re-Driver	2-Channel (Dual)	SN65LVPE512

Catalog

2nd generation dual channel USB 3.0 redriver

Key Features

• Single Lane USB 3.0 Equalizer, RedriverSelectable Equalization, De-Emphasis and OutputSwing ControlIntegrated TerminationHot-Plug CapableLow Active Power (U0 state)315 mW (Typical), VCC= 3.3 VUSB 3.0 Low Power Support7 mW (Typical) When No Connection Detected70 mW (Typical) When Link in U2, U3 ModeExcellent Jitter and Loss CompensationCapability:> 40 Inches of Total 4-Mil Stripline on FR4Small Foot Print: 3 mm × 3 mm and 4 mm × 4 mm24-pin QFN PackagesHigh Protection Against ESD TransientHBM: 5,000 VCDM: 1,500 VMM: 200 VSingle Lane USB 3.0 Equalizer, RedriverSelectable Equalization, De-Emphasis and OutputSwing ControlIntegrated TerminationHot-Plug CapableLow Active Power (U0 state)315 mW (Typical), VCC= 3.3 VUSB 3.0 Low Power Support7 mW (Typical) When No Connection Detected70 mW (Typical) When Link in U2, U3 ModeExcellent Jitter and Loss CompensationCapability:> 40 Inches of Total 4-Mil Stripline on FR4Small Foot Print: 3 mm × 3 mm and 4 mm × 4 mm24-pin QFN PackagesHigh Protection Against ESD TransientHBM: 5,000 VCDM: 1,500 VMM: 200 V

Description

The SN65LVPE512 device is a dual-channel, single-lane USB 3.0 redriver and signal conditioner supporting data rates of 5 Gbps. The device complies with USB 3.0 spec revision 1.0, supporting electrical idle condition and low frequency periodic signals (LFPS) for USB 3.0 power management modes. The SN65LVPE512 device is a dual-channel, single-lane USB 3.0 redriver and signal conditioner supporting data rates of 5 Gbps. The device complies with USB 3.0 spec revision 1.0, supporting electrical idle condition and low frequency periodic signals (LFPS) for USB 3.0 power management modes.
