TPK-R Series

Manufacturer: OptiFuse

Catalog

UL CLASS M FUSE, TIME DELAY 7A

Part	Current Rating (Amps)	Class	Voltage Rating - AC	Breaking Capacity @ Rated Voltage	Mounting Type	Applications	Package / Case [y]	Package / Case [x]	Package / Case	Response Time	Fuse Type	Approval Agency	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Voltage Rating - DC
OptiFuse TPK-R-7A	7 A	CC	600 VAC	10 kA 200 kA	Requires Holder	Electrical Industrial	38 mm	10 mm	5AG	Slow Blow	Cartridge	cULus UL 248	10.3 mm	38 mm	1.496 "	0.406 "

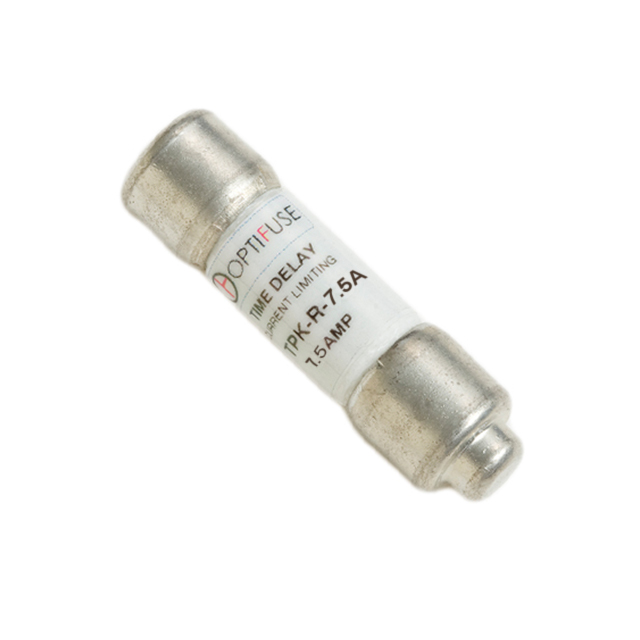

OptiFuse TPK-R-7.5A	7.5 A		600 V	100 kA 200 kA	Requires Holder		38 mm	10 mm	5AG	Slow Blow	Cartridge Ceramic	CSA UL			1.5 in	0.409 in	38.1 mm	10.4 mm	300 V
OptiFuse TPK-R-20A	20 A	CC	600 VAC	10 kA 200 kA	Requires Holder	Electrical Industrial	38 mm	10 mm	5AG	Slow Blow	Cartridge	cULus UL 248	10.3 mm	38 mm	1.496 "	0.406 "
OptiFuse TPK-R-15A	15 A	CC	600 VAC	10 kA 200 kA	Requires Holder	Electrical Industrial	38 mm	10 mm	5AG	Slow Blow	Cartridge	cULus UL 248	10.3 mm	38 mm	1.496 "	0.406 "
OptiFuse TPK-R-2A	2 A	CC	600 VAC	10 kA 200 kA	Requires Holder	Electrical Industrial	38 mm	10 mm	5AG	Slow Blow	Cartridge	cULus UL 248	10.3 mm	38 mm	1.496 "	0.406 "
OptiFuse TPK-R-10A	10 A	CC	600 VAC	10 kA 200 kA	Requires Holder	Electrical Industrial	38 mm	10 mm	5AG	Slow Blow	Cartridge	cULus UL 248	10.3 mm	38 mm	1.496 "	0.406 "
OptiFuse TPK-R-1A		CC	600 VAC	10 kA 200 kA	Requires Holder	Electrical Industrial	38 mm	10 mm	5AG	Slow Blow	Cartridge	cULus UL 248	10.3 mm	38 mm	1.496 "	0.406 "
OptiFuse TPK-R-1.125A	1.125 A		600 V	100 kA 200 kA	Requires Holder		38 mm	10 mm	5AG	Slow Blow	Cartridge Ceramic	CSA UL			1.5 in	0.409 in	38.1 mm	10.4 mm	300 V
OptiFuse TPK-R-6A	6 A	CC	600 VAC	10 kA 200 kA	Requires Holder	Electrical Industrial	38 mm	10 mm	5AG	Slow Blow	Cartridge	cULus UL 248	10.3 mm	38 mm	1.496 "	0.406 "
OptiFuse TPK-R-1.5A	1.5 A	CC	600 VAC	10 kA 200 kA	Requires Holder	Electrical Industrial	38 mm	10 mm	5AG	Slow Blow	Cartridge	cULus UL 248	10.3 mm	38 mm	1.496 "	0.406 "
