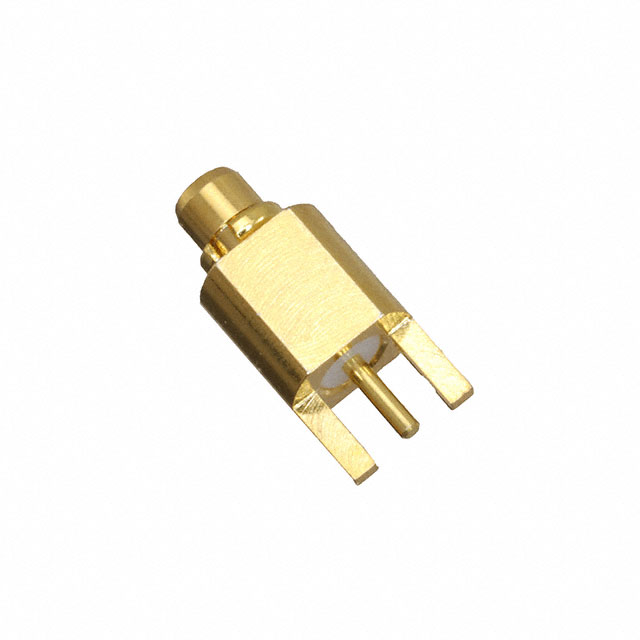

RF12-35 Series
Manufacturer: Adam Tech
Beta
⌘K
RF MMCX CONNECTOR
| Part | Center Contact Plating | Dielectric Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Body Material | Impedance | Shield Termination | Mounting Type | Number of Ports | Frequency - Max [Max] | Center Contact Material | Housing Color | Connector Style | Contact Termination | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Gold | Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | 170 V | Brass | 50 Ohms | Solder | Board Edge Cutout Surface Mount | 1 | 6000 MHz | Brass | White | MMCX | Solder | Plug Male Pin | Snap-On |
