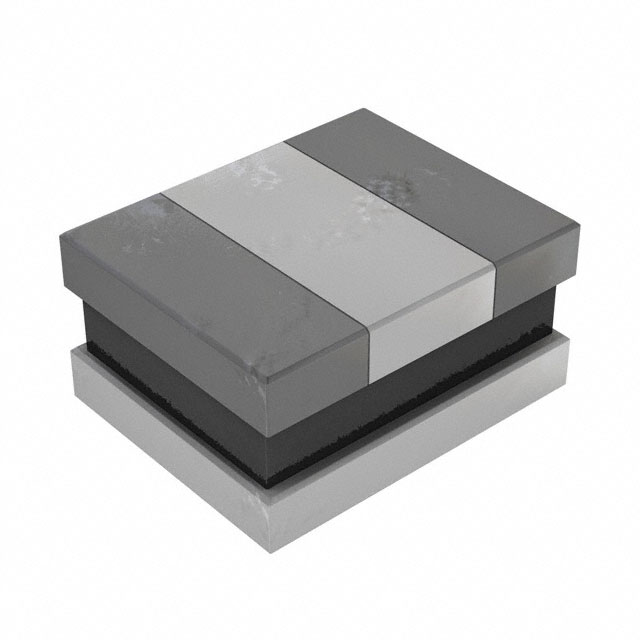

SRN2012 Series

Catalog

POWER INDUCTOR (SMD), 1 ΜH, 2.3 A, SEMISHIELDED, 2.5 A, SRN2012 SERIES

Part	Inductance Frequency - Test	Shielding	Package / Case	Frequency - Self Resonant	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Inductance	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]	Current - Saturation (Isat)	Material - Core	Q @ Freq	DC Resistance (DCR)
Bourns Inc. SRN2012-1R0M	1 MHz	Shielded	Nonstandard	110 MHz	-55 C	125 °C	Drum Core Wirewound	Surface Mount	1.6 mm	0.079 in	0.063 "	2 mm	20 %	1 µH	104 mOhm	1.2 mm	0.047 "	2.3 A	1 MHz	10	2.5 A	Ferrite
Bourns Inc. SRN2012-1R5M	1 MHz	Shielded	Nonstandard	90 MHz	-55 C	125 °C	Drum Core Wirewound	Surface Mount	1.6 mm	0.079 in	0.063 "	2 mm	20 %	1.5 µH	108 mOhm	1.2 mm	0.047 "	1.8 A			2 A	Ferrite	1 MHz 12
Bourns Inc. SRN2012-R47M	1 MHz	Shielded	Nonstandard	220 MHz	-55 C	125 °C	Drum Core Wirewound	Surface Mount	1.6 mm	0.079 in	0.063 "	2 mm	20 %	470 nH	46 mOhm	1.2 mm	0.047 "	2.9 A			3.5 A	Ferrite
Bourns Inc. SRN2012-R24M	1 MHz	Shielded	Nonstandard	360 MHz	-55 C	125 °C	Drum Core Wirewound	Surface Mount	1.6 mm	0.079 in	0.063 "	2 mm	20 %	240 nH		1.2 mm	0.047 "	3.5 A			4.8 A	Ferrite	1 MHz 8	33 mOhm
