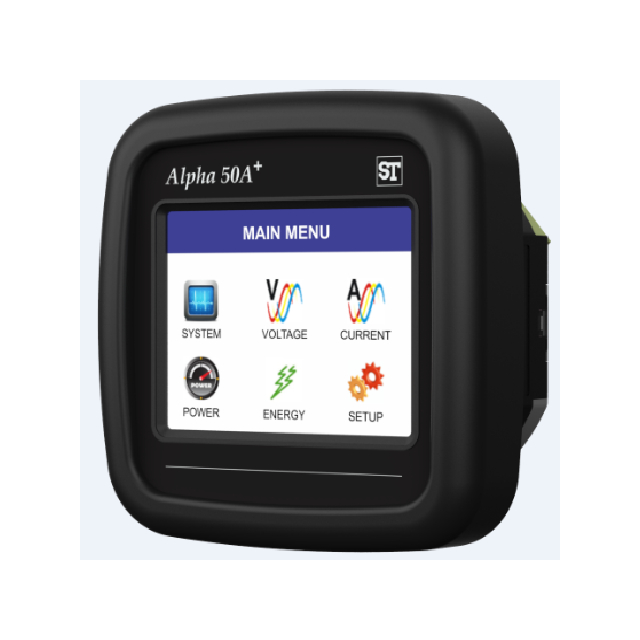

AP50-3M Series
Manufacturer: Sifam Tinsley Instrumentation Inc
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
MULT METER 1A 5A/480V LCD PNL MT
| Part | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Type | Ingress Protection IP Rating | Ingress Protection Description | Number of Characters Per Row | Measuring Type | Features | Analog (Count) | Output Type | Display Type | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Display Characters - Height | Measuring Range (Current) Maximum | Measuring Range (Voltage) Maximum | Mounting Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sifam Tinsley Instrumentation Inc | Screw Terminal Wire Leads | 70 °C | -20 °C | Energy Monitor Frequency Multifunction Meter (Current Power) Voltage | IP54 | Dust Protected Water Resistant | Programmable | Current (3-Phase) Voltage Wattage | Resistive Touchscreen | 2 | Analog | LCD - Tri Color Characters | 92 mm | Square | 92 mm | Programmable | 1 A 5 A | 480 VAC | Panel Mount | 60 VAC/DC | 300 VAC/DC |
