770174 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

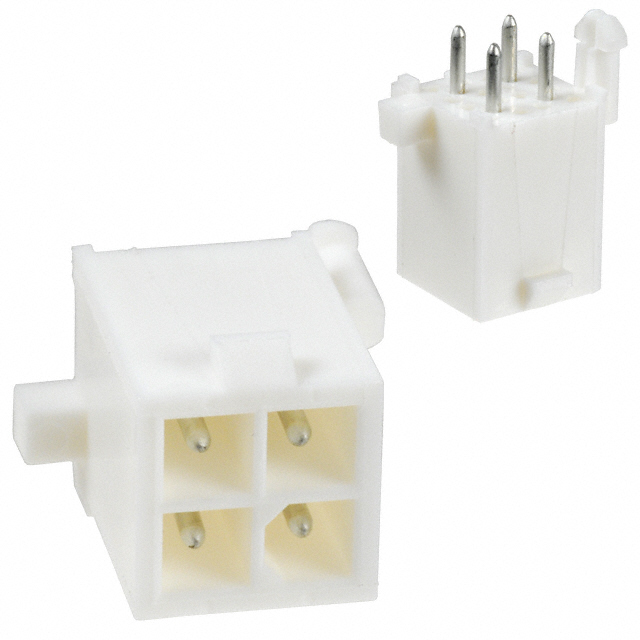

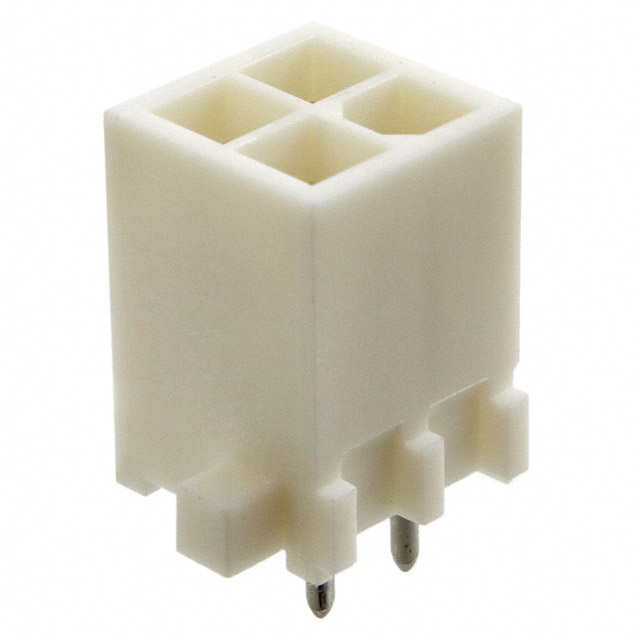

CONN HEADER VERT 4POS 4.14MM
| Part | Applications | Contact Finish Thickness - Post | Contact Material | Current Rating (Amps) | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Termination | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Number of Positions | Fastening Type | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Voltage Rating | Style | Insulation Material | Contact Shape | Features | Contact Type | Shrouding | Number of Rows [custom] | Insulation Height | Insulation Height | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Insulation Color | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | Brass | Varies by Wire Gauge | 4.14 mm | 0.163 in | Through Hole | Solder | Gold | 0.76 Ám | 30 Áin | Header | 4 | Locking Ramp | 4.45 mm | 0.175 in | 0.163 in | 4.14 mm | 600 VAC | Board to Cable/Wire | Nylon Polyamide (PA) | Circular | Board Lock | Male Pin | Shrouded - 4 Wall | 2 | 13.5 mm | 0.531 in | UL94 V-0 | -20 ░C | 105 ░C | Tin-Lead | White | All |
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | Brass | Varies by Wire Gauge | 4.14 mm | 0.163 in | Through Hole | Solder | Tin-Lead | 3.81 Ám | 150 Áin | Header | 4 | Locking Ramp | 4.45 mm | 0.175 in | 0.163 in | 4.14 mm | 600 VAC | Board to Cable/Wire | Nylon Polyamide (PA) | Circular | Board Lock | Male Pin | Shrouded - 4 Wall | 2 | 13.5 mm | 0.531 in | UL94 V-0 | -20 ░C | 85 °C | Tin-Lead | White | All |
