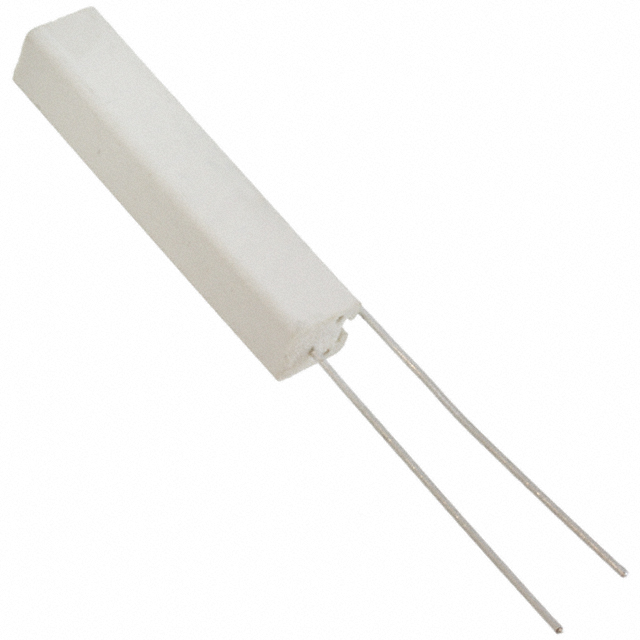

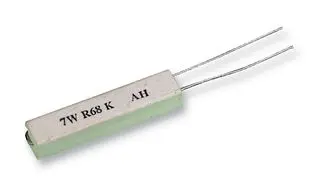

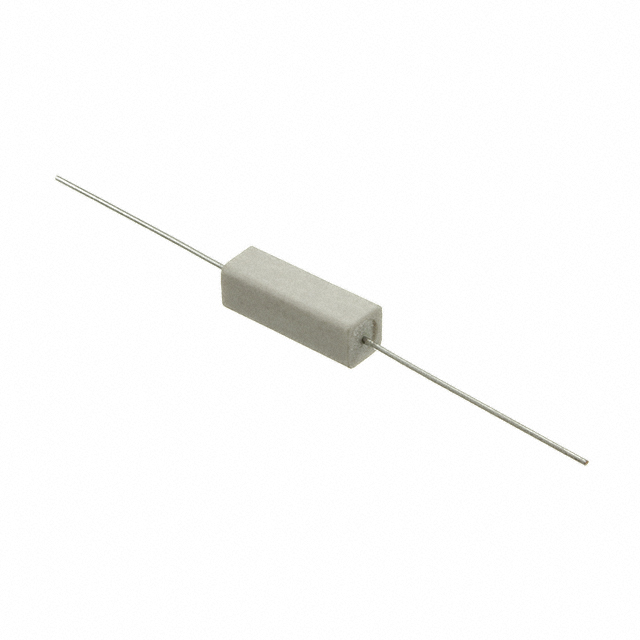

SBCHE6 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
THROUGH HOLE WIREWOUND RESISTOR, SBC SERIES, 10 OHM, 7 W, - 5%, 8.4 V, AXIAL LEADED ROHS COMPLIANT: YES
| Part | Temperature Coefficient | Package / Case | Features | Number of Terminations [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Composition | Power (Watts) | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | ±400ppm/°C | Axial Radial Formed | Flame Proof Safety | 2 | -55 C | 350 °C | 5 % | 0.276 " | 8 mm | 7 mm | 0.315 " | 1.496 " | 38 mm | Wirewound | 7 W | 10 Ohms |
 TE Connectivity AMP Connectors | ±400ppm/°C | Axial Radial Formed | Flame Proof Safety | 2 | -55 C | 350 °C | 5 % | 0.276 " | 8 mm | 7 mm | 0.315 " | 1.496 " | 38 mm | Wirewound | 7 W | 3.9 Ohms |
 TE Connectivity AMP Connectors | ±400ppm/°C | Axial Radial Formed | Flame Proof Safety | 2 | -55 C | 350 °C | 5 % | 0.276 " | 8 mm | 7 mm | 0.315 " | 1.496 " | 38 mm | Wirewound | 7 W | 6.8 Ohms |
