HEADERS & WIRE HOUSINGS HEADER 40POS R ANGLE NO LATCH

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions	Style	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Color	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Fastening Type	Material Flammability Rating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Shape	Connector Type	Number of Positions Loaded	Number of Rows [custom]	Overall Contact Length	Overall Contact Length	Number of Positions [custom]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Wire Type	Color	Features	Cable Termination	Pitch	Pitch	Contact Finish	Insulation Height	Insulation Height
3M Electronic Specialty 3432-5003	-55 C	105 ░C	Tin-Lead	40	Board to Board Cable	3.94 mm	0.155 "	0.76 Ám	30 Áin	Right Angle Through Hole	Black	Copper Alloy	0.1 "	2.54 mm	Gold	Push-Pull	UL94 V-0	Solder	0.1 in	2.54 mm	Male Pin	1.75 A	0.24 in	6.1 mm	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	8.64 mm	0.34 in	Square	Header	All	2
3M Electronic Specialty N3431-6202RB	-55 C	105 ░C	Tin		Board to Board Cable			0.76 Ám	30 Áin	Through Hole	Black	Copper Alloy	0.1 "	2.54 mm	Gold	Latch Lock/Eject Hooks	UL94 V-0	Solder	0.1 in	2.54 mm	Male Pin	1.75 A	0.24 in	6.1 mm	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	17.27 mm	0.68 in	Square	Header	All	2	0.652 in	16.56 mm	34	0.112 in	2.84 mm
3M Electronic Specialty N3372-6203RB	-55 C	105 ░C	Tin	60	Board to Board Cable	3.94 mm	0.155 "	0.76 Ám	30 Áin	Through Hole	Black	Copper Alloy	0.1 "	2.54 mm	Gold	Latch Lock/Eject Hooks	UL94 V-0	Solder	0.1 in	2.54 mm	Male Pin	1.75 A	0.24 in	6.1 mm	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	17.27 mm	0.68 in	Square	Header	All	2	0.695 in	17.65 mm
3M Electronic Specialty N3793-600T02RB	-55 C	105 ░C	Tin	10	Board to Board Cable	4.45 mm	0.175 in	0.76 Ám	30 Áin	Through Hole	Black	Copper Alloy	0.1 "	2.54 mm	Gold	Push-Pull	UL94 V-0	Press-Fit Solder	0.1 in	2.54 mm	Male Pin	1.75 A	0.24 in	6.1 mm	Shrouded - 4 Wall	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	17.27 mm	0.68 in	Square	Header	All	2	0.715 in	18.16 mm				7.62 µm	300 µin
3M Electronic Specialty N3793-5303RB	-55 C	105 ░C	Tin	10	Board to Board Cable	3.94 mm	0.155 "	0.76 Ám	30 Áin	Right Angle Through Hole	Black	Copper Alloy	0.1 "	2.54 mm	Gold	Latch Lock/Eject Hooks Long	UL94 V-0	Solder	0.1 in	2.54 mm	Male Pin	1.75 A	0.24 in	6.1 mm	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	8.64 mm	0.34 in	Square	Header	All	2						5.08 µm	200 µin
3M Electronic Specialty 3419-7000				30						Free Hanging (In-Line)											Female Socket									Receptacle		2								30 Áin	0.76 Ám	2.54 mm	0.1 "	Ribbon Cable	Gray	Closed End	IDC	0.1 "	2.54 mm	Gold
3M Electronic Specialty N3793-2002RB	-55 C	105 ░C	Tin	10	Board to Board Cable			0.76 Ám	30 Áin	Through Hole	Black	Copper Alloy	0.1 "	2.54 mm	Gold	Push-Pull	UL94 V-0	Solder	0.1 in	2.54 mm	Male Pin	1.75 A	0.24 in	6.1 mm	Shrouded - 3 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			Square	Header	All	2	0.652 in	16.56 mm		0.112 in	2.84 mm														0.685 in	17.4 mm
3M Electronic Specialty N3372-5003RB	-55 C	105 ░C	Tin	60	Board to Board Cable	3.94 mm	0.155 "	0.76 Ám	30 Áin	Right Angle Through Hole	Black	Copper Alloy	0.1 "	2.54 mm	Gold	Push-Pull	UL94 V-0	Solder	0.1 in	2.54 mm	Male Pin	1.75 A	0.24 in	6.1 mm	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	8.64 mm	0.34 in	Square	Header	All	2
3M Electronic Specialty N3314-2202RB	-55 C	105 ░C	Tin	14	Board to Cable/Wire			0.76 Ám	30 Áin	Through Hole	Black	Copper Alloy	0.1 "	2.54 mm	Gold	Latch Lock/Eject Hooks	UL94 V-0	Solder	0.1 in	2.54 mm	Male Pin	1.75 A	0.24 in	6.1 mm	Shrouded - 3 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	17.27 mm	0.68 in	Square	Header	All	2	0.652 in	16.56 mm		0.112 in	2.84 mm	5.08 µm	200 µin

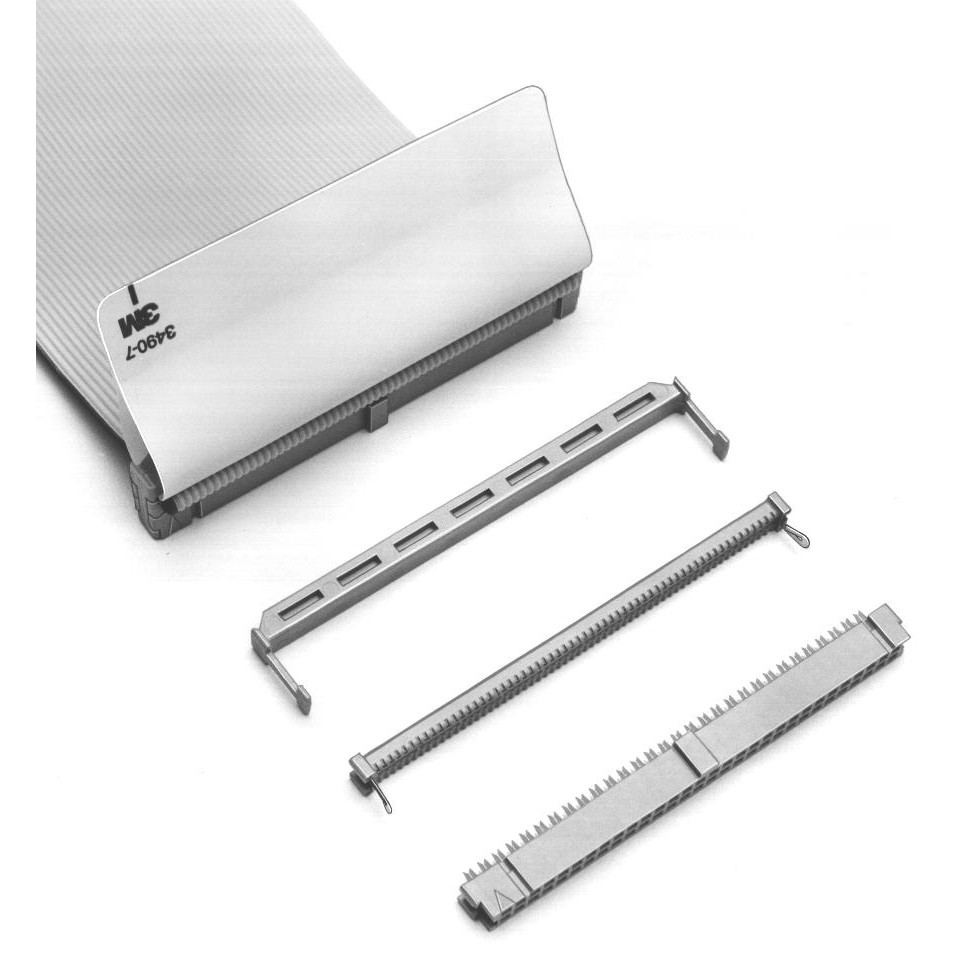

3M Electronic Specialty 3626-6024				24						Free Hanging (In-Line)											Female Socket									Receptacle		2								30 Áin	0.76 Ám	2.54 mm	0.1 "	Ribbon Cable	Gray	Feed Through Strain Relief	IDC	0.1 "	2.54 mm	Gold
