DIN-032C Series

Catalog

CONN DIN RCPT 48POS PCB GOLD

Part	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch	Pitch	Number of Positions Loaded	Contact Finish	Termination	Style	Style	Number of Positions	Mounting Type	Number of Rows [custom]	Features

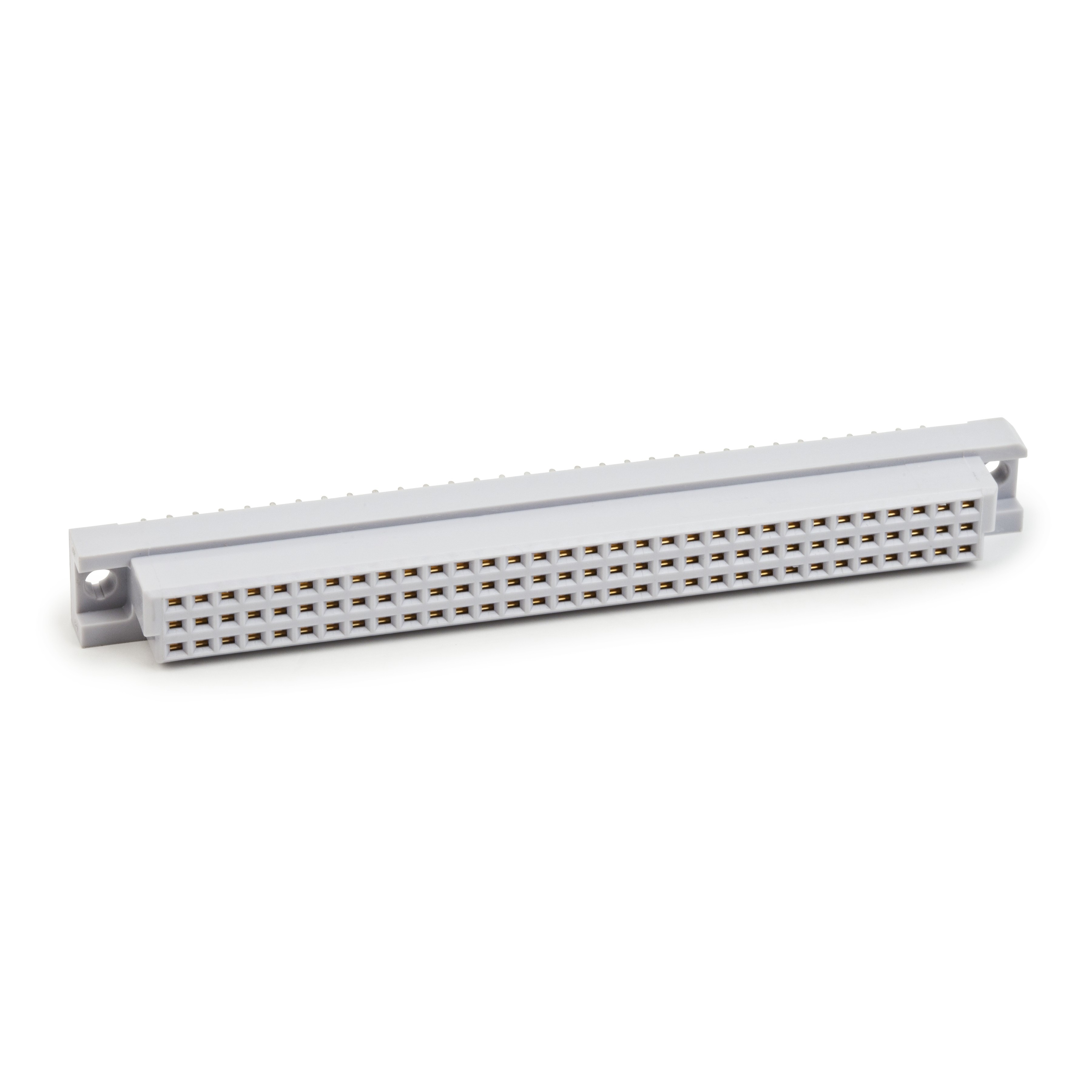

3M Electronic Specialty DIN-032CSB-PW1-HM	3 A	UL94 V-0	-55 C	125 °C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3 µin	0.076 Ám	Receptacle Female Sockets	0.1 "	2.54 mm	32	Gold	Press-Fit	C/2	1/2 C	48	Through Hole	3
3M Electronic Specialty DIN-032CPB-SR1-HM	3 A	UL94 V-0	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	3 µin	0.076 Ám	Plug Male Pins	0.1 "	2.54 mm	32	Gold	Solder	C/2	1/2 C	48	Right Angle Through Hole	3
3M Electronic Specialty DIN-032CSB-R1L-KR	3 A	UL94 V-0	-55 C	125 °C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	30 Áin	0.76 Ám	Receptacle Female Sockets	0.1 "	2.54 mm	32	Gold	Solder	C/2	1/2 C	48	Through Hole	3	Board Lock
3M Electronic Specialty DIN-032CSB-PS-HM	3 A	UL94 V-0	-55 C	125 °C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3 µin	0.076 Ám	Receptacle Female Sockets	0.1 "	2.54 mm	32	Gold	Press-Fit	C/2	1/2 C	48	Through Hole	3
3M Electronic Specialty DIN-032CPB-RR1-HM	3 A	UL94 V-0	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	3 µin	0.076 Ám	Plug Male Pins	0.1 "	2.54 mm	32	Gold	Solder	C/2	1/2 C	48	Right Angle Through Hole	3	Board Lock
3M Electronic Specialty DIN-032CSB-S1-TR	3 A	UL94 V-0	-55 C	125 °C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3 µin	0.076 Ám	Receptacle Female Sockets	0.1 "	2.54 mm	32	Gold	Solder	C/2	1/2 C	48	Through Hole	3
3M Electronic Specialty DIN-032CPB-RR1-TR	3 A	UL94 V-0	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	3 µin	0.076 Ám	Plug Male Pins	0.1 "	2.54 mm	32	Gold	Solder	C/2	1/2 C	48	Right Angle Through Hole	3	Board Lock
3M Electronic Specialty DIN-032CSB-S1L-TR	3 A	UL94 V-0	-55 C	125 °C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	3 µin	0.076 Ám	Receptacle Female Sockets	0.1 "	2.54 mm	32	Gold	Solder	C/2	1/2 C	48	Through Hole	3
3M Electronic Specialty DIN-032CSB-PW1-KR	3 A	UL94 V-0	-55 C	125 °C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	30 Áin	0.76 Ám	Receptacle Female Sockets	0.1 "	2.54 mm	32	Gold	Press-Fit	C/2	1/2 C	48	Through Hole	3
3M Electronic Specialty DIN-032CPB-SR1-TR	3 A	UL94 V-0	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	3 µin	0.076 Ám	Plug Male Pins	0.1 "	2.54 mm	32	Gold	Solder	C/2	1/2 C	48	Right Angle Through Hole	3
