624 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

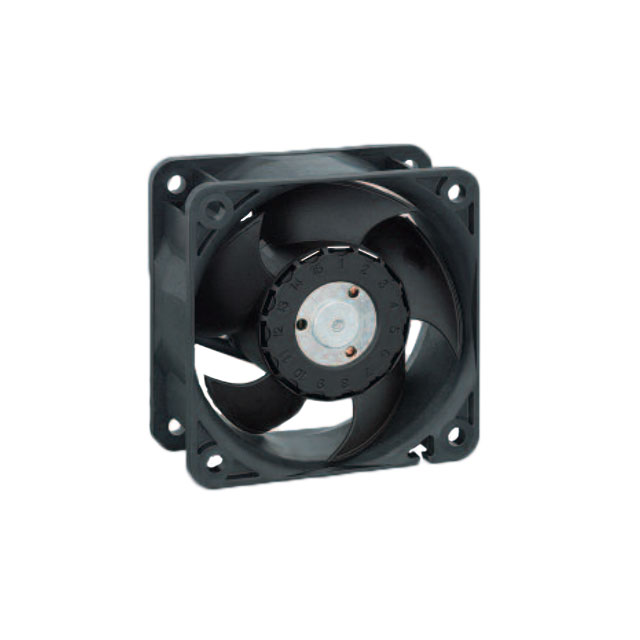

FAN AXIAL 60X25.4MM 24VDC WIRE
| Part | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Lifetime @ Temp. | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Size / Dimension [z] | Size / Dimension [x] | Weight | Weight | RPM | Noise | Termination | Voltage - Rated | Air Flow | Air Flow | Bearing Type | Power (Watts) | Fan Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 18 VDC | 28 V | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 65000 Hrs | -20 ░C | 70 °C | 25.4 mm | 60 mm | 60 mm | 0.187 lb | 84.82 g | 8200 RPM | 43 dB | 3 Wire Leads | 24 VDC | 0.924 mł/min | 33 CFM | Ball | 3.6 W | Tubeaxial | Locked Rotor Protection Speed Sensor (Tach) |
