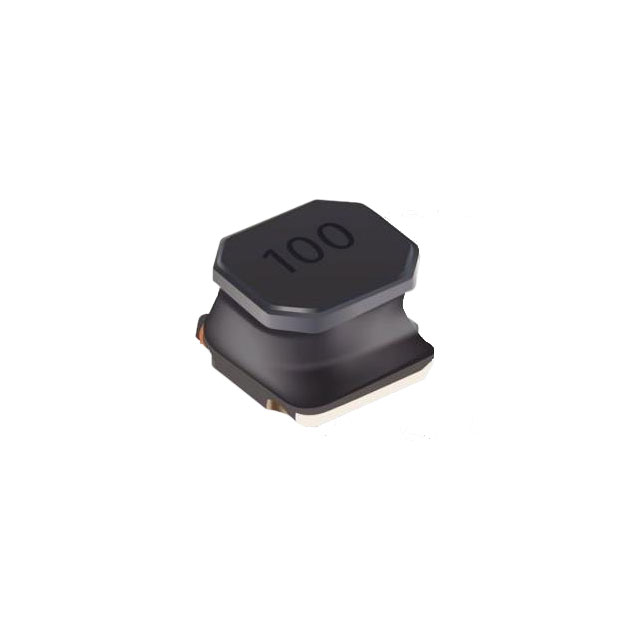

SRN4030HA Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR POWER SEMI-SHIELDED WIREWOUND 100UH 20% 100KHZ 26Q-FACTOR FERRITE 0.55A 1.45OHM DCR 1515 AUTOMOTIVE AEC-Q200 T/R
| Part | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Material - Core | DC Resistance (DCR) | Package / Case | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Frequency - Self Resonant | Ratings | Shielding | Type | Inductance Frequency - Test | Q @ Freq [custom] | Q @ Freq [custom] | Current - Saturation (Isat) | Tolerance | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm | -55 C | 150 °C | Ferrite | 1.45 Ohm | Nonstandard | 100 µH | 0.118 " | 3 mm | 7 MHz | AEC-Q200 | Shielded | Drum Core Wirewound | 100 kHz | 26 | 796 kHz | 700 mA | 20 % | 0.55 A |
