TVFKCL Series

Catalog

PLUGGABLE TERMINAL BLOCKS 2 POS 5MM PITCH PLUG 24-16AWG SPRING

Part	Current - UL	Termination Style	Current - IEC	Pitch	Pitch	Voltage - IEC	Color	Voltage - UL	Number of Positions	Positions Per Level [custom]	Positions Per Level [custom]	Number of Levels [custom]	Number of Levels [custom]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Plug Wire Entry	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Mating Finish	Type	Mounting Type	Insulation Height [custom]	Insulation Height [custom]	Housing Material	Material Flammability Rating	Wire Strip Length	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
Phoenix Contact 1715921	8 A	Screwless - Spring Cage Tension Clamp	10 A	0.197 in	5 mm	630 V	Green	300 V	2	2	4	1	2	1.5 mm²	0.2 mm²	180 °	16 AWG	24 AWG	Silver	Plug Female Sockets	Free Hanging (In-Line)
Phoenix Contact 1715934	8 A	Screwless - Spring Cage Tension Clamp	10 A	0.197 in	5 mm	630 V	Green	300 V		3	6	1	2	1.5 mm²	0.2 mm²	180 °	16 AWG	24 AWG	Silver	Plug Female Sockets	Free Hanging (In-Line)	0.591 in	15 mm	Polyamide (PA) Nylon	UL94 V-0	8 mm

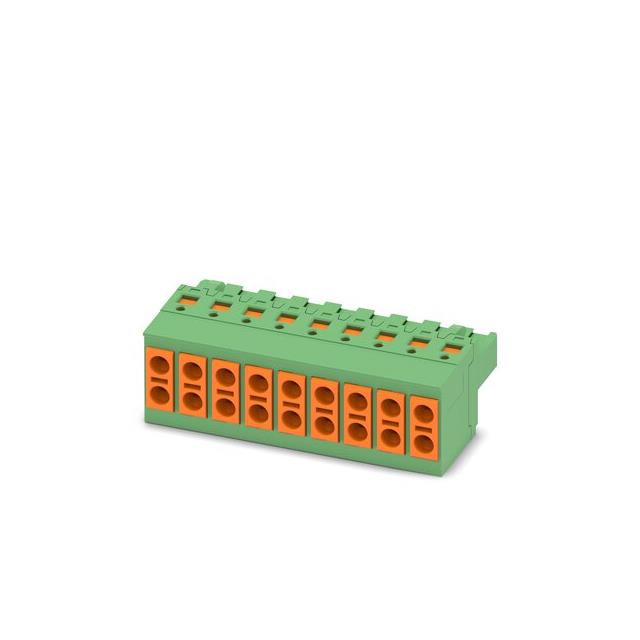

Phoenix Contact 1715992	8 A	Screwless - Spring Cage Tension Clamp	10 A	0.197 in	5 mm	630 V	Green	300 V	9	9	18	1	2	1.5 mm²	0.2 mm²	180 °	16 AWG	24 AWG	Silver	Plug Female Sockets	Free Hanging (In-Line)	0.591 in	15 mm	Polyamide (PA) Nylon	UL94 V-0	8 mm	1.5 mm˛	0.2 mm˛
Phoenix Contact 1716001	8 A	Screwless - Spring Cage Tension Clamp	10 A	0.197 in	5 mm	630 V	Green	300 V	10	10	20	1	2	1.5 mm²	0.2 mm²	180 °	16 AWG	24 AWG	Silver	Plug Female Sockets	Free Hanging (In-Line)	0.591 in	15 mm	Polyamide (PA) Nylon	UL94 V-0	8 mm
