Desktop AC Adapters
Desktop AC Adapters
| Part | Weight | Weight | Input Type | Voltage - Output | Input Connector | No Load Power Consumption | Output Connector [custom] | Output Connector [custom] | Output Connector | Output Connector [x] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Current - Output (Max) [Max] | Power (Watts) | Polarization | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Region Utilized | Efficiency | Form | Cord Length | Cord Length | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

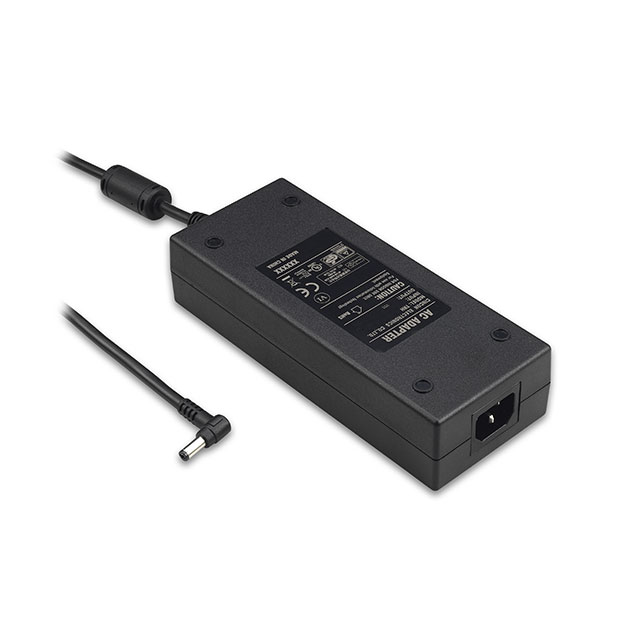

 Cincon Electronics Co. LTD | 1.069 lbs | 485 g | Cord (Sold Separately) | 18 V | IEC 320-C14 | 150 mW | 2.1 mm | 5.5 mm | Barrel Plug | 12 mm | -30 ░C | 70 °C | 142 mm | 5.59 in | 37 mm | 1.46 in | 58 mm | 2.28 in | 5.56 A | 100 W | Positive Center | 264 VAC | 90 VAC | ITE (Commercial) | International | CoC Tier 2 Level VI | Desktop (Class I) | 1.22 m | 48 in | CE cULus FCC NEMKO PSE TUV |
Cincon Electronics Co. LTD | 1.069 lbs | 485 g | Cord (Sold Separately) | 36 V | IEC 320-C14 | 150 mW | 2.1 mm | 5.5 mm | Barrel Plug | 12 mm | -30 ░C | 70 °C | 142 mm | 5.59 in | 37 mm | 1.46 in | 58 mm | 2.28 in | 2.78 A | 100 W | Positive Center | 264 VAC | 90 VAC | ITE (Commercial) | International | CoC Tier 2 Level VI | Desktop (Class I) | 1.22 m | 48 in | CE cULus FCC NEMKO PSE TUV |
Cincon Electronics Co. LTD | 1.069 lbs | 485 g | Cord (Sold Separately) | 24 V | IEC 320-C14 | 150 mW | 2.1 mm | 5.5 mm | Barrel Plug | 12 mm | -30 ░C | 70 °C | 142 mm | 5.59 in | 37 mm | 1.46 in | 58 mm | 2.28 in | 4.17 A | 100 W | Positive Center | 264 VAC | 90 VAC | ITE (Commercial) | International | CoC Tier 2 Level VI | Desktop (Class I) | 1.22 m | 48 in | CE cULus FCC NEMKO PSE TUV |
Cincon Electronics Co. LTD | 1.069 lbs | 485 g | Cord (Sold Separately) | 12 V | IEC 320-C14 | 150 mW | 2.1 mm | 5.5 mm | Barrel Plug | 12 mm | -30 ░C | 70 °C | 142 mm | 5.59 in | 37 mm | 1.46 in | 58 mm | 2.28 in | 100 W | Positive Center | 264 VAC | 90 VAC | ITE (Commercial) | International | CoC Tier 2 Level VI | Desktop (Class I) | 1.22 m | 48 in | CE cULus FCC NEMKO PSE TUV |
