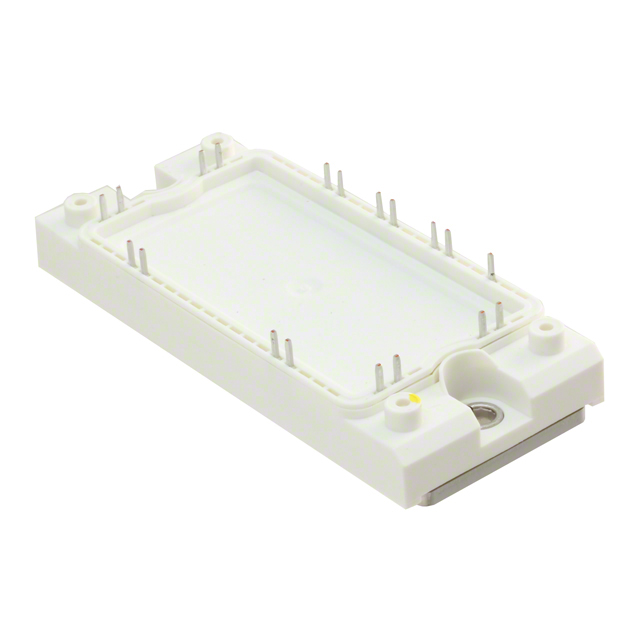

DDB6U134 Series

Manufacturer: INFINEON

Catalog

IGBT MOD 1600V 70A 500W

Part	IGBT Type	Vce(on) (Max) @ Vge, Ic	Package / Case	Input Capacitance (Cies) @ Vce	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Mounting Type	Input	Operating Temperature	Configuration	Operating Temperature [Min]	Operating Temperature [Max]
INFINEON DDB6U134N16RRBOSA1	NPT	2.75 V	Module	5.1 nF	1600 V	500 çA	500 W	70 A	Module	Chassis Mount	Standard	150 °C	Single
INFINEON DDB6U134N16RRB11BPSA1		2.6 V	Module	5.1 nF	1200 V	1 mA	400 W	125 A	AG-ECONO2B	Chassis Mount	Standard		Single Chopper	-40 °C	150 °C
INFINEON DDB6U134N16RRBPSA1		2.75 V	Module	5.1 nF	1200 V	500 çA	500 W	70 A	AG-ECONO2B	Chassis Mount	Standard	150 °C	Single Chopper
