KMM Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 1000UF 200 VOLT

Part	Voltage - Rated	Ripple Current @ Low Frequency	Capacitance	Tolerance	Applications	Polarization	Lifetime @ Temp.	Size / Dimension	Size / Dimension [diameter]	Ripple Current @ High Frequency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Package / Case	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKMM201VSN102MR35S	200 VDC	2.3 A	1000 µF	20 %	General Purpose	Polar	3000 Hrs	30 mm	1.181 "	3.45 A	Through Hole	105 ░C	-25 °C	37 mm	1.457 in	Radial Can - Snap-In	0.394 in	10 mm
Chemi-Con EKMM201VSN271MR20S	200 VDC	1.05 A	270 µF	20 %	General Purpose	Polar	3000 Hrs	30 mm	1.181 "	1.575 A	Through Hole	105 ░C	-25 °C			Radial Can - Snap-In	0.394 in	10 mm	0.866 in	22 mm
Chemi-Con EKMM201VSN221MQ20S	200 VDC	850 mA	220 µF	20 %	General Purpose	Polar	3000 Hrs		1 "	1.275 A	Through Hole	105 ░C	-25 °C			Radial Can - Snap-In	0.394 in	10 mm	0.866 in	22 mm	25.4 mm
Chemi-Con EKMM201VSN152MA40T	200 VDC	3.08 A	1.5 mF	20 %	General Purpose	Polar	3000 Hrs		1.378 "	4.62 A	Through Hole	105 ░C	-25 °C		1.654 in	Radial Can - Snap-In	0.394 in	10 mm			35 mm	42 mm	166 mOhm
Chemi-Con EKMM401VSN151MR25S	400 V	880 mA	150 µF	20 %	General Purpose	Polar	3000 Hrs	30 mm	1.181 "	1.2584 A	Through Hole	105 ░C	-25 °C			Radial Can - Snap-In	0.394 in	10 mm						1.063 in	27 mm

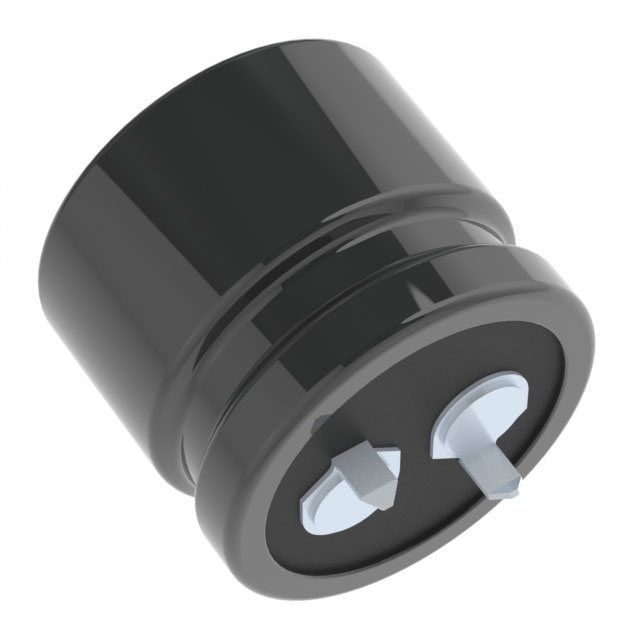

Chemi-Con EKMM451VSN680MQ20T	450 V		68 µF	20 %	General Purpose	Polar	3000 Hrs		1 "		Through Hole	105 ░C	-25 °C			Radial Can - Snap-In	0.394 in	10 mm	0.866 in	22 mm	25.4 mm

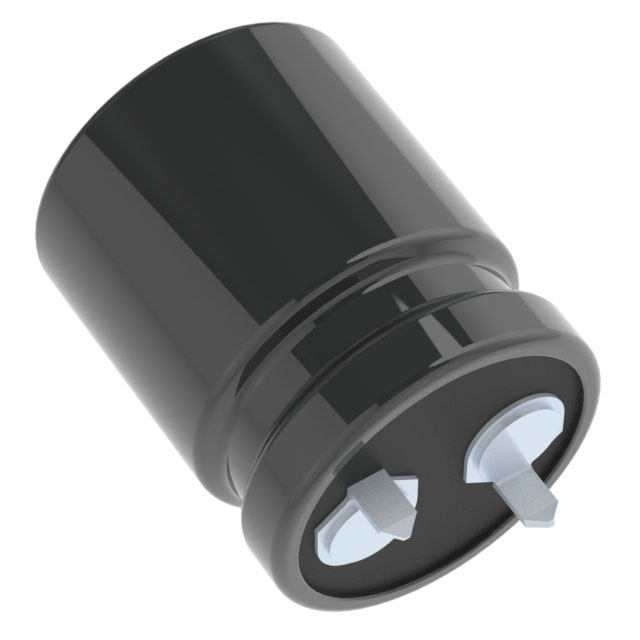

Chemi-Con EKMM451VSN560MP25S	450 V	400 mA	56 µF	20 %	General Purpose	Polar	3000 Hrs		0.866 "	572 mA	Through Hole	105 ░C	-25 °C			Radial Can - Snap-In	0.394 in	10 mm			22 mm		5.92 Ohm	1.063 in	27 mm
Chemi-Con EKMM201VSN681MA25S	200 VDC	1.78 A	680 µF	20 %	General Purpose	Polar	3000 Hrs		1.378 "	2.67 A	Through Hole	105 ░C	-25 °C			Radial Can - Snap-In	0.394 in	10 mm			35 mm			1.063 in	27 mm
Chemi-Con EKMM451VSN680MQ25S	450 V	500 mA	68 µF	20 %	General Purpose	Polar	3000 Hrs		1 "	715 mA	Through Hole	105 ░C	-25 °C			Radial Can - Snap-In	0.394 in	10 mm			25.4 mm			1.063 in	27 mm

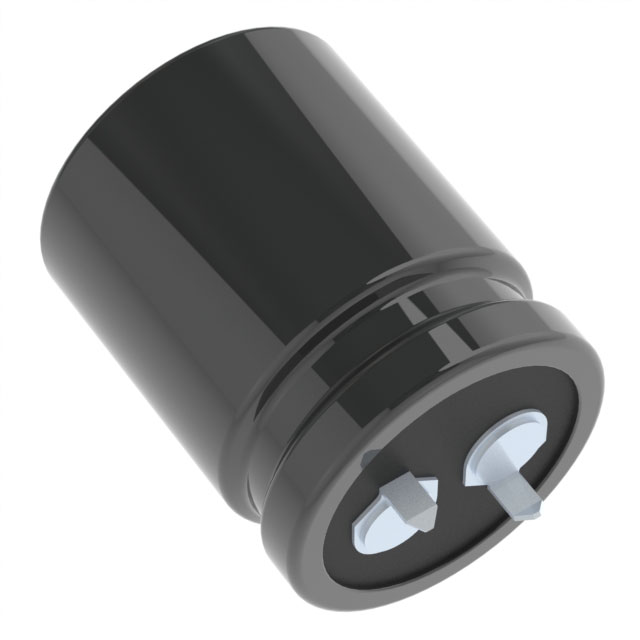

Chemi-Con EKMM451VSN101MQ30S	450 V	690 mA	100 µF	20 %	General Purpose	Polar	3000 Hrs		1 "	986.7 mA	Through Hole	105 ░C	-25 °C		1.26 in	Radial Can - Snap-In	0.394 in	10 mm			25.4 mm	32 mm	3.315 Ohm
