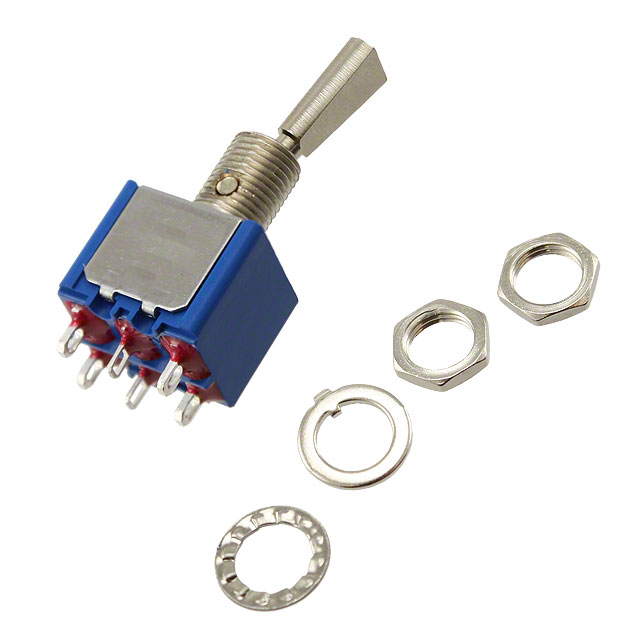

5646A Series
Manufacturer: APEM Inc.
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Actuator Material | Electrical Life | Circuit | Bushing Thread | Actuator Type | Voltage Rating - AC | Actuator Length [x] | Voltage Rating - DC | Mounting Type | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Features | Illumination | Current Rating (Amps) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | Brass Nickel Plated | 50000 Cycles | DPDT | 1/4-40 | Locking Lever | 125 V | 14.85 mm | 30 V | Panel Mount | 6.5 mm | 85 °C | -40 C | On-On | Epoxy Sealed Terminals | Non-Illuminated | 4 A 6 A | Solder Lug |
APEM Inc. | Brass Nickel Plated | 50000 Cycles | DPDT | 1/4-40 | Standard Round | 125 V | 30 V | Panel Mount | 6.5 mm | 85 °C | -40 C | On-On | Front Panel Sealing | Non-Illuminated | 4 A 6 A | Solder Lug | |
APEM Inc. | Brass Nickel Plated | 50000 Cycles | DPDT | 1/4-40 | Locking Lever | 125 V | 14.75 mm | 30 V | Panel Mount | 6.5 mm | 85 °C | -40 C | On-On | Epoxy Sealed Terminals | Non-Illuminated | 4 A 6 A | Solder Lug |
 APEM Inc. | Brass Nickel Plated | 50000 Cycles | DPDT | Flatted | 125 V | 11.4 mm | 30 V | Panel Mount | 6.5 mm | 85 °C | -40 C | On-On | Epoxy Sealed Terminals | Non-Illuminated | 4 A 6 A | Solder Lug |
