155230 Series

Catalog

CONN HEADER R/A 30POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Style	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Features	Fastening Type	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Shape	Contact Finish - Mating	Material Flammability Rating	Number of Positions	Current Rating (Amps)	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post
3M Electronic Specialty 155230-5202-RB	200 µin	5.08 µm	Solder	Board to Cable/Wire	Header	0.76 Ám	30 Áin	Shrouded - 4 Wall	2	2 mm	0.079 in	3.81 mm	0.15 in	All	Right Angle Through Hole	-55 C	105 ░C	Tin	Keying Slot	Latch Lock/Eject Hooks	Copper Alloy	0.079 "	2 mm	6.28 mm	0.247 "	0.112 in	2.84 mm	Black	Square	Gold	UL94 V-0	30	1.25 A	Male Pin
3M Electronic Specialty 155230-2200-RB-WF	200 µin	5.08 µm	Solder	Board to Cable/Wire	Header	0.76 Ám	30 Áin	Shrouded - 4 Wall	2	2 mm	0.079 in	3.81 mm	0.15 in	All	Surface Mount	-55 C	105 ░C	Tin	Keying Slot Pick and Place	Latch Lock/Eject Hooks	Copper Alloy	0.079 "	2 mm					Black	Square	Gold	UL94 V-0	30	1.25 A	Male Pin	10.8 mm	0.425 in

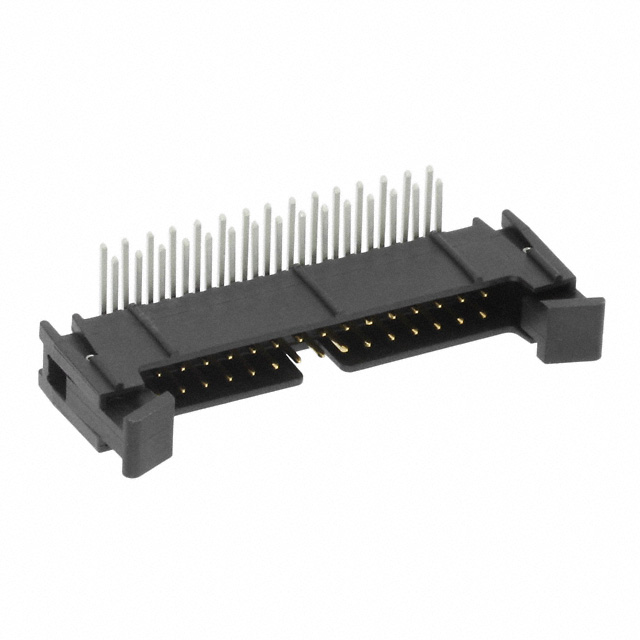

3M Electronic Specialty 155230-5203-RB	200 µin	5.08 µm	Solder	Board to Cable/Wire	Header	0.76 Ám	30 Áin	Shrouded - 4 Wall	2	2 mm	0.079 in	3.81 mm	0.15 in	All	Right Angle Through Hole	-55 C	105 ░C	Tin	Keying Slot	Latch Lock/Eject Hooks	Copper Alloy	0.079 "	2 mm	6.28 mm	0.247 "			Black	Square	Gold	UL94 V-0	30	1.25 A	Male Pin			3.94 mm	0.155 "
