LT4293 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

POE IC, PD CONTROLLER, 60 V INPUT, 1 CHANNEL, 840 HZ, 90 W, 75 % DUTY CYCLE, -40 TO 85 °C, MSOP-10

Part	Package / Case	Supplier Device Package	Type	Current - Supply	Mounting Type	Standards	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Number of Channels [custom]	Voltage - Supply	Supplied Contents	Utilized IC / Part	Contents
Analog Devices Inc./Maxim Integrated LT4293IMS#PBF	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	10-MSOP	Controller (PD)	2 mA	Surface Mount	802.3af (PoE) 802.3at (PoE+) 802.3bt LTPoE++	-40 °C	85 °C	90 W	1	60 VDC
Analog Devices Inc./Maxim Integrated LT4293HMS#PBF	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	10-MSOP	Controller (PD)	2 mA	Surface Mount	802.3af (PoE) 802.3at (PoE+) 802.3bt LTPoE++	-40 C	125 °C	90 W	1	60 VDC
Analog Devices Inc./Maxim Integrated LT4293HMS#TRPBF	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	10-MSOP	Controller (PD)	2 mA	Surface Mount	802.3af (PoE) 802.3at (PoE+) 802.3bt LTPoE++	-40 C	125 °C	90 W	1	60 VDC
Analog Devices Inc./Maxim Integrated LT4293HDD#TRPBF	10-WFDFN Exposed Pad	10-DFN (3x3)	Controller (PD)	2 mA	Surface Mount	802.3af (PoE) 802.3at (PoE+) 802.3bt LTPoE++	-40 C	125 °C	90 W	1	60 VDC
Analog Devices Inc./Maxim Integrated LT4293IMS#TRPBF	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	10-MSOP	Controller (PD)	2 mA	Surface Mount	802.3af (PoE) 802.3at (PoE+) 802.3bt LTPoE++	-40 °C	85 °C	90 W	1	60 VDC

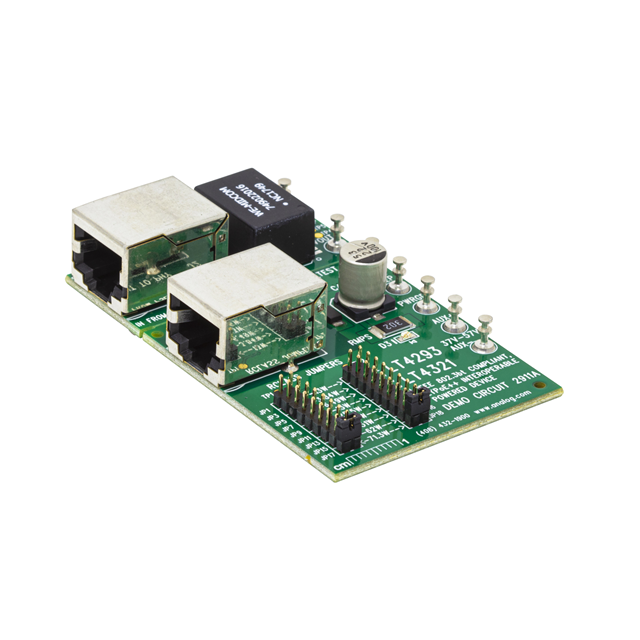

Analog Devices Inc./Maxim Integrated DC2911A			Power Management									Board(s)	LT4293	Board(s)
Analog Devices Inc./Maxim Integrated LT4293IDD#TRPBF	10-WFDFN Exposed Pad	10-DFN (3x3)	Controller (PD)	2 mA	Surface Mount	802.3af (PoE) 802.3at (PoE+) 802.3bt LTPoE++	-40 °C	85 °C	90 W	1	60 VDC
Analog Devices Inc./Maxim Integrated LT4293IDD#PBF	10-WFDFN Exposed Pad	10-DFN (3x3)	Controller (PD)	2 mA	Surface Mount	802.3af (PoE) 802.3at (PoE+) 802.3bt LTPoE++	-40 °C	85 °C	90 W	1	60 VDC
