M1612 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

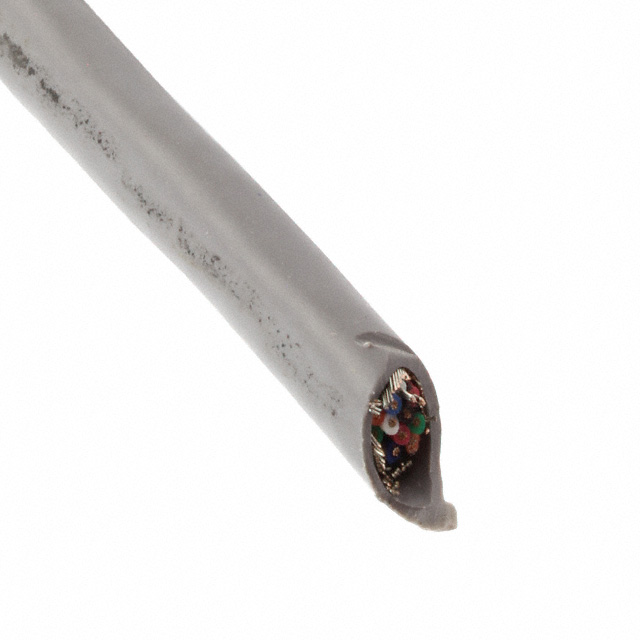

CABLE 12COND 28AWG SHLD 3000'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Voltage | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 90 % | Poly-Vinyl Chloride (PVC) | Braid | 5.33 mm | 0.21 in | 28 AWG | Slate | 7 | 36 AWG | 12 | 600 V | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Copper Tinned | -55 C | 105 ░C | Multi-Conductor | 914.4 m | 3000 ' |
