ENTRELEC SNACOMPACT Series

Catalog

C2.5/5

Part	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Positions	Type	Termination Style	Terminal - Width [y]	Current - UL	Number of Levels	Voltage - IEC	Current - IEC	Voltage - UL	Disconnect Type	Fuse Type
TE Connectivity AMP Connectors 1SNL605010R0000	Gray	16 mm²	0.2 mm²	12 AWG	24 AWG	2	Feed Through	Screw	5 mm	20 A	1	1 kV	24 A	600 V
TE Connectivity AMP Connectors 1SNL606150R0000	Green Yellow	16 mm²	0.2 mm²	10 AWG	24 AWG	2	Ground Earth	Screw	6 mm		1
TE Connectivity AMP Connectors 1SNL605150R0000	Green Yellow	16 mm²	0.2 mm²	12 AWG	24 AWG	2	Ground Earth	Screw	5 mm		1
TE Connectivity AMP Connectors 1SNL606011R0000	Gray	16 mm²	0.2 mm²	10 AWG	24 AWG	2	Feed Through	Screw	6 mm	25 A	1	1 kV	24 A	600 V
TE Connectivity AMP Connectors 1SNL900201R0000
TE Connectivity AMP Connectors 1SNL608410R0000	Gray	6 mm²	0.5 mm²	12 AWG	22 AWG	2	Disconnect	Screw	8 mm		1	630 V	6.3 A	600 V	Fuse Lever	5mm x 20mm 5mm x 25mm
TE Connectivity AMP Connectors 1SNL908310R0000
TE Connectivity AMP Connectors 1SNL900101R0000

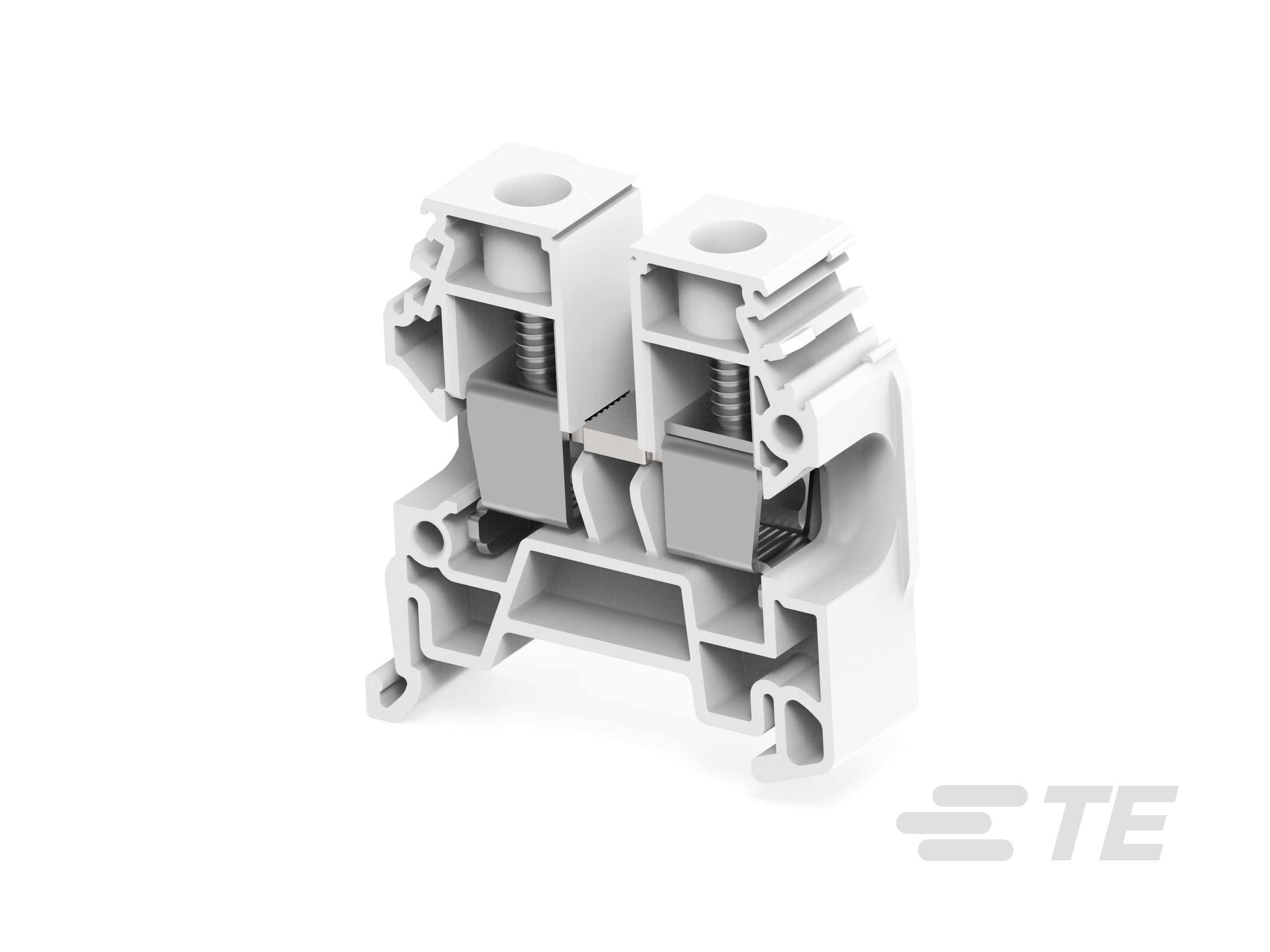

TE Connectivity AMP Connectors 1SNL612010R0000	Gray	16 mm²	0.5 mm²	4 AWG	20 AWG	2	Feed Through	Screw	12 mm	80 A	1	1 kV	76 A	600 V
TE Connectivity AMP Connectors 1SNL906750R0000
