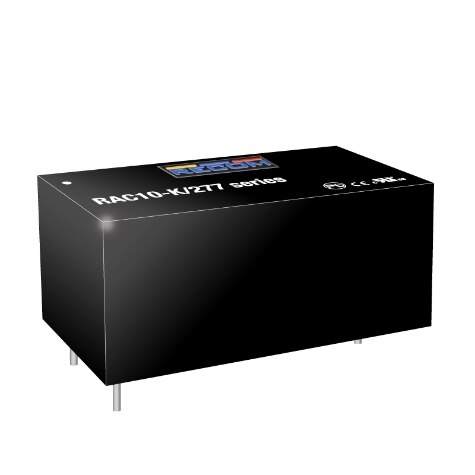

RAC10-K/277 Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 10 W, 15 V, 670 MA

Part	Mounting Type	Package / Case	Number of Outputs	Voltage - Output 1	Efficiency	Applications	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Power (Watts)	Current - Output (Max) [Max]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Load Regulation	Line Regulation	Current - Output (Max)	Current - Output (Max)	Line Regulation	Load Regulation	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max)
Recom Power RAC10-15SK/277	Through Hole	4-DIP Module	1	15 V	85 %	Household Appliances ITE (Commercial)	Universal Input	80 ¯C	-40 °C	Enclosed	10 W	670 mA	CE cURus	305 VAC	80 VAC	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in
Recom Power RAC10-12SK/277	Through Hole	4-DIP Module	1	12 V	84 %	Household Appliances ITE (Commercial)	Universal Input	80 ¯C	-40 °C	Enclosed	10 W	840 mA	CE cURus	305 VAC	80 VAC	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in	±1%	0.5 %
Recom Power RAC10-05SK/277	Through Hole	4-DIP Module	1	5 V		Household Appliances ITE (Commercial)	Universal Input	80 ¯C	-40 °C	Enclosed	10 W	2 A	CE cURus	305 VAC	80 VAC	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in
Recom Power RAC10-15DK/277	Through Hole	5-DIP Module	2	15 V	83 %	Household Appliances ITE (Commercial)	Universal Input	80 ¯C	-40 °C	Enclosed	10 W		CE cURus	305 VAC	80 VAC	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in	±1%	0.5 %	340 mA	340 mA
Recom Power RAC10-18SK/277	Through Hole	5-DIP Module 4 Leads	1	18 V	85 %	Household Appliances ITE (Commercial)		80 ¯C	-40 °C	Enclosed	10 W	560 mA	CB CE cURus EAC	305 VAC 430 VDC	85 VAC 120 VDC	52.5 mm	0.91 in	1.08 in			2.07 in					Ý0.5%	1 %	27.4 mm	23 mm
Recom Power RAC10-24SK/277	Through Hole	4-DIP Module	1	24 V	84 %	Household Appliances ITE (Commercial)	Universal Input	80 ¯C	-40 °C	Enclosed	10 W	420 mA	CE cURus	305 VAC	80 VAC	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in	±1%	0.5 %
Recom Power RAC10-3.3SK/277	Through Hole	4-DIP Module	1	3.3 V	79 %	Household Appliances ITE (Commercial)	Universal Input	80 ¯C	-40 °C	Enclosed	8 W	2.5 A	CE cURus	305 VAC	80 VAC	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in		0.5 %				1.5 %
Recom Power RAC10-12DK/277	Through Hole	5-DIP Module	2	12 V		Household Appliances ITE (Commercial)	Universal Input	80 ¯C	-40 °C	Enclosed	10 W		CE cURus	305 VAC	80 VAC	52.5 mm	0.93 "	1.08 in	27.4 mm	23.5 mm	2.07 in									420 mA
