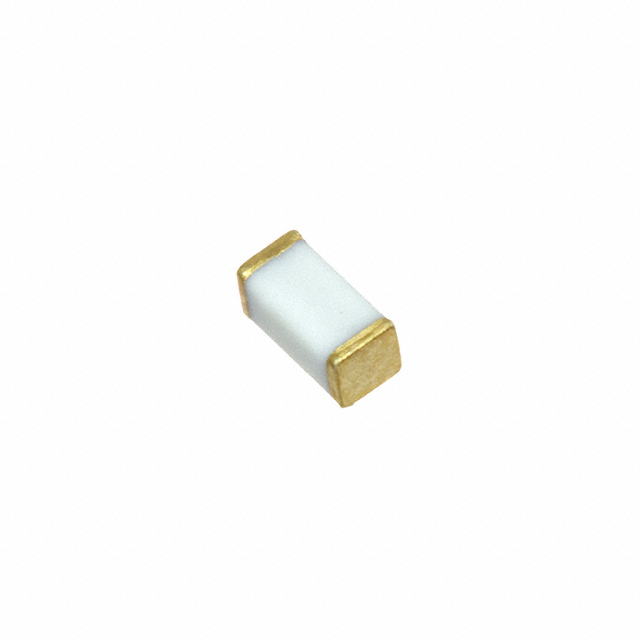

MGA-A Series

Catalog

SURFACE MOUNT FUSES MGA-A FUSE FF 250MA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Melting I²t	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Breaking Capacity @ Rated Voltage	Response Time	Current Rating (Amps)	Package / Case	Voltage Rating - DC	Fuse Type	Approval Agency	Mounting Type	Voltage Rating - AC
SCHURTER Inc. 3-103-090	-55 C	125 °C	0.00013	0.061 in	0.126 "	1.55 mm	1.55 mm	0.061 in	3.2 mm	50 A 300 A	Fast Blow	0.25 A	2-SMD Square End Block	125 VDC	Board Mount (Cartridge Style Excluded)	cURus UL	Surface Mount	125 V
SCHURTER Inc. 3-103-091	-55 C	125 °C	0.00013	0.061 in	0.126 "	1.55 mm	1.55 mm	0.061 in	3.2 mm	50 A 300 A	Fast Blow	0.25 A	2-SMD Square End Block	125 VDC	Board Mount (Cartridge Style Excluded)	cURus UL	Surface Mount	125 V
SCHURTER Inc. 3-103-107	-55 C	125 °C	0.008	0.061 in	0.126 "	1.55 mm	1.55 mm	0.061 in	3.2 mm	50 A 300 A	Fast Blow	1 A	2-SMD Square End Block	125 VDC	Board Mount (Cartridge Style Excluded)	cURus UL	Surface Mount	125 V
SCHURTER Inc. 3-103-108	-55 C	125 °C	0.008	0.061 in	0.126 "	1.55 mm	1.55 mm	0.061 in	3.2 mm	50 A 300 A	Fast Blow	1 A	2-SMD Square End Block	125 VDC	Board Mount (Cartridge Style Excluded)	cURus UL	Surface Mount	125 V
