9001-1033 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA / STRAIGHT PLUG MALE SOLDER
| Part | Dielectric Material | Mating Cycles | Voltage Rating | Body Finish | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Mounting Type | Number of Ports | Frequency - Max [Max] | Housing Color | Shield Termination | Impedance | Center Contact Material | Connector Type | Connector Style | Cable Group | Contact Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

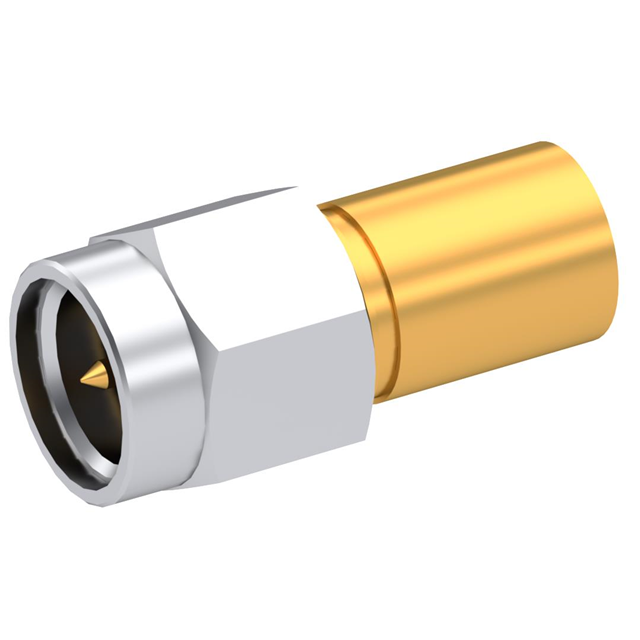

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | 335 V | Gold | Stainless Steel | Gold | -65 ░C | 165 °C | Threaded | Free Hanging (In-Line) | 1 | 12.4 GHz | Gold | Solder | 50 Ohms | Beryllium Copper | Plug Male Pin | SMA | 142 223 RG-55 | Solder | |

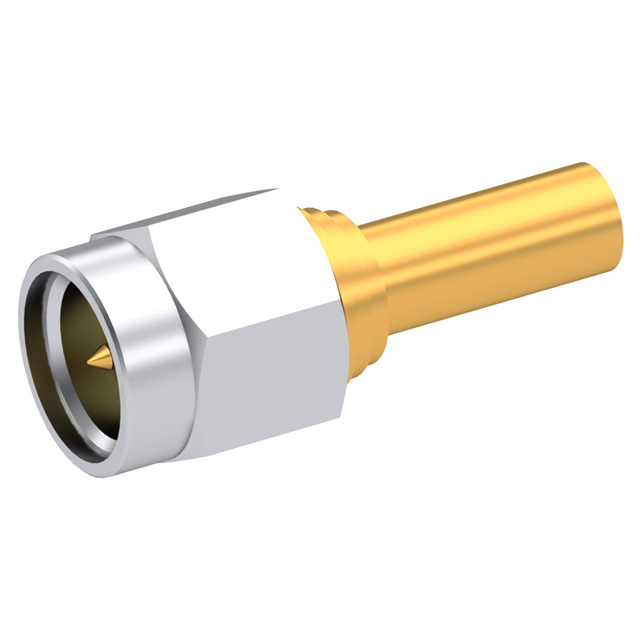

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | 335 V | Gold | Stainless Steel | Gold | -65 ░C | 125 °C | Threaded | Free Hanging (In-Line) | 1 | 12.4 GHz | Gold | Crimp | 50 Ohms | Beryllium Copper | Plug Male Pin | SMA | RG-178 | Crimp | 196 |
