IPF016N Series

Manufacturer: INFINEON

Catalog

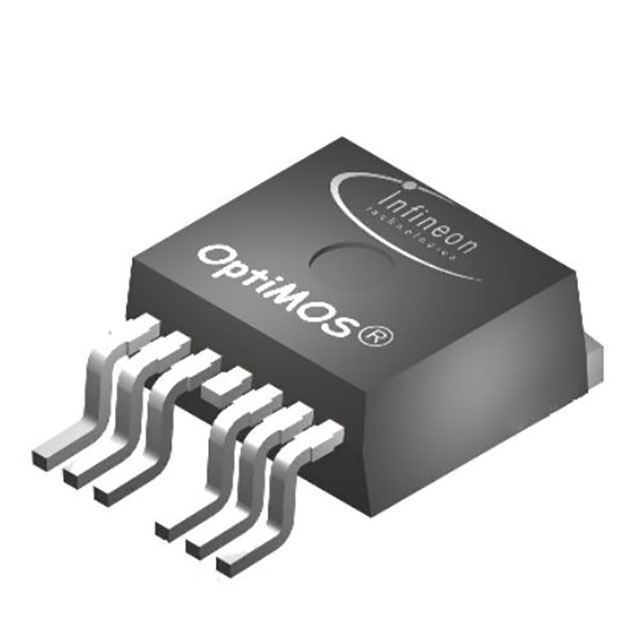

MOSFET, N-CH, 100V, 274A, TO-263 ROHS COMPLIANT: YES

Part	Drain to Source Voltage (Vdss)	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Vgs(th) (Max) @ Id	Supplier Device Package	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Power Dissipation (Max)	Technology
INFINEON IPF016N10NF2SATMA1	100 V	Surface Mount	6 V 10 V	241 nC	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	3.8 V	PG-TO263-7-14	N-Channel	11000 pF	20 V	274 A	1.6 mOhm	175 °C	-55 °C	300 W	MOSFET (Metal Oxide)
