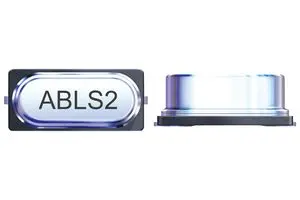

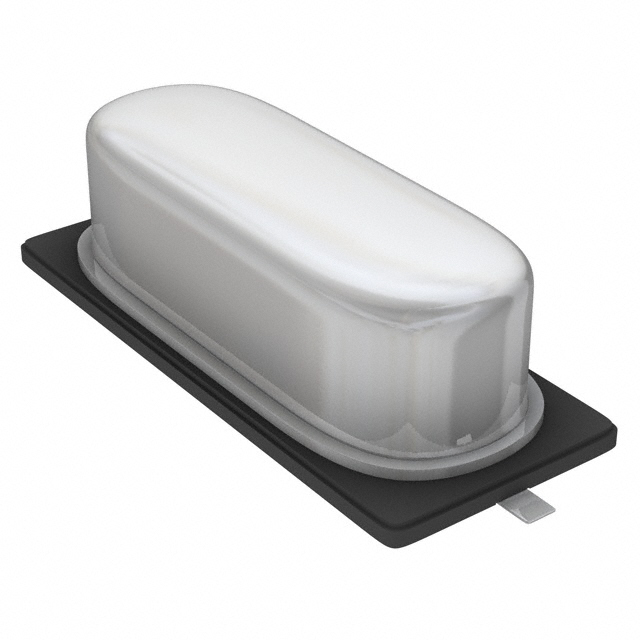

ABLS2 Series

Catalog

CRYSTALS XTAL HC-49/US SMD 3.2MM HEIGHT 25MHZ TOL +/-30PPM STAB +/-30PPM -40°C ~ 85°C 18PF 100 OHMS

Part	Operating Mode	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Load Capacitance	Frequency Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	ESR (Equivalent Series Resistance)	Package / Case	Frequency Stability	Type	Frequency
Abracon LLC ABLS2-25.000MHZ-D4Y-T	3rd Overtone Fundamental	0.185 in	0.449 in	Surface Mount	18 pF	30 ppm	0.13 in	3.3 mm	85 °C	-40 C	HC-49/US	40 Ohms	HC-49/US	30 ppm	MHz Crystal	25 MHz
Abracon LLC ABLS2-25.000MHZ-D4YF-T	Fundamental	0.185 in	0.449 in	Surface Mount	18 pF	30 ppm	0.13 in	3.3 mm	85 °C	-40 C	HC-49/US	40 Ohms	HC-49/US	30 ppm	MHz Crystal	25 MHz
Abracon LLC ABLS2-14.31818MHZ-D4Y-T	Fundamental	0.185 in	0.449 in	Surface Mount	18 pF	30 ppm	0.13 in	3.3 mm	85 °C	-40 C	HC-49/US	50 Ohms	HC-49/US	30 ppm	MHz Crystal	14.31818 MHz
Abracon LLC ABLS2-8.912MHZ-B4Y-T	Fundamental	0.185 in	0.449 in	Surface Mount	18 pF	30 ppm	0.13 in	3.3 mm	70 °C	-20 ░C	HC-49/US	80 Ohm	HC-49/US	30 ppm	MHz Crystal
Abracon LLC ABLS2-64.000MHZ-B4Y-T	3rd Overtone	0.185 in	0.449 in	Surface Mount	18 pF	30 ppm	0.13 in	3.3 mm	70 °C	-20 ░C	HC-49/US	80 Ohm	HC-49/US	30 ppm	MHz Crystal	64 MHz
Abracon LLC ABLS2-4.9152MHZ-B4Y-T	Fundamental	0.185 in	0.449 in	Surface Mount	18 pF	30 ppm	0.13 in	3.3 mm	70 °C	-20 ░C	HC-49/US	180 Ohms	HC-49/US	30 ppm	MHz Crystal	4.9152 MHz
