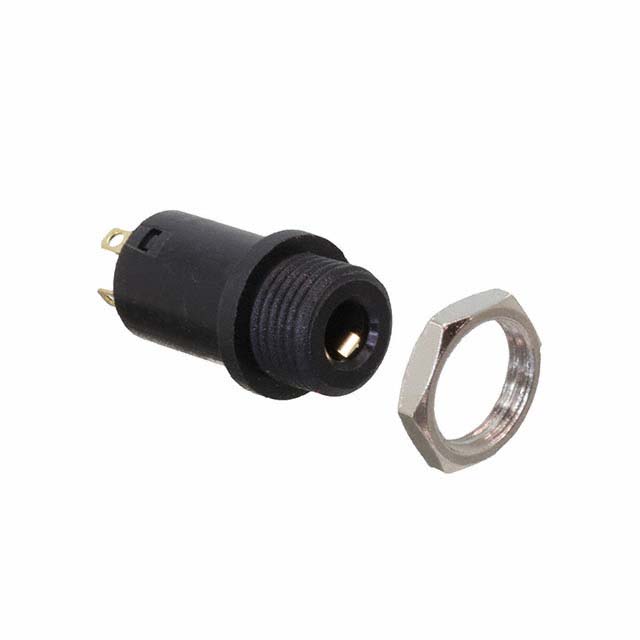

ASJ-165 Series
Manufacturer: Adam Tech
Beta
⌘K
AUDIO JACK
| Part | Panel Hole Size | Panel Hole Size | Includes | Voltage - Rated | Mating Length/Depth | Mating Length/Depth | Current Rating (Amps) | Thread Size | Contact Material | Body Color | Contact Material - Plating | Mounting Type | Internal Switch(s) | Connector Type | Gender | Termination | Signal Lines | Operating Temperature [Min] | Operating Temperature [Max] | Features | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Actual Diameter [diameter] | Actual Diameter [diameter] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Shielding | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 11 mm | 0.433 in | 1 Nut 1 Washer 3 pcs - 1 Connector | 30 V | 14 mm | 0.551 in | 0.5 A | M8x0.75 | Phosphor Bronze | Black | Gold | Panel Mount Through Hole | Phone Jack | Female | Solder Eyelet(s) | Stereo (4 Conductor TRRS) | -20 ░C | 70 °C | Thread Lock | 0.125 in | 3.5 mm | 0.141 in | 0.142 in | 3.6 mm | 4 | 3 | Unshielded | Black | |
 Adam Tech | 10 mm | 0.394 in | 1 Nut 1 Washer 3 pcs - 1 Connector | 30 V | 14 mm | 0.551 in | 0.5 A | M8x0.75 | Phosphor Bronze | Black | Gold | Panel Mount Through Hole | Phone Jack | Female | Solder Eyelet(s) | Stereo (4 Conductor TRRS) | -20 ░C | 70 °C | Thread Lock | 0.125 in | 3.5 mm | 0.141 in | 0.142 in | 3.6 mm | 4 | 3 | Unshielded | Black |
