LUG TERMINAL, LCAX SERIES, CRIMP, 4 AWG, COMPRESSION LUG, M10

Part	Diameter - Barrel ID	Diameter - Barrel ID	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Contact Material	Insulation	Color	Terminal Style	Width - Outer Edges	Width - Outer Edges	Stud/Tab Size	Terminal Type	Tab Thickness	Tab Thickness	Termination	Wire Gauge	Mounting Type	Length - Overall [x]	Length - Overall [x]	Tab Thickness [custom]	Tab Thickness [custom]	Width - Outer Edges [y]	Width - Outer Edges [y]	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Ring ID	Diameter - Ring ID	Diameter - Ring ID

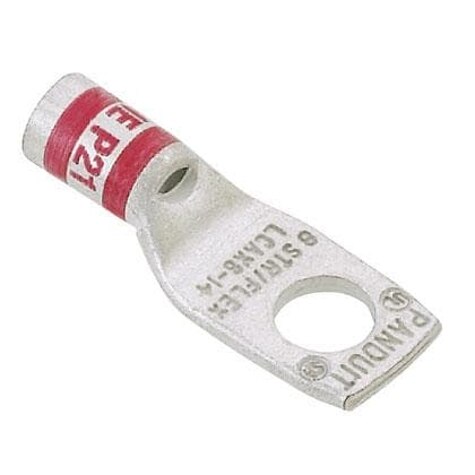

Panduit Corp LCAX4-38-L	7.11 mm	0.28 in	10.41 mm	0.41 "	0.38 in	9.65 mm	Electro-Tin	Copper	Non-Insulated	Gray	Single Stud Hole	0.62 in	15.75 mm	0.375 Stud	Rectangular Tongue	1.78 mm	0.07 in	Barrel Crimp	4 AWG	Free Hanging (In-Line)	39.88 mm	1.57 in

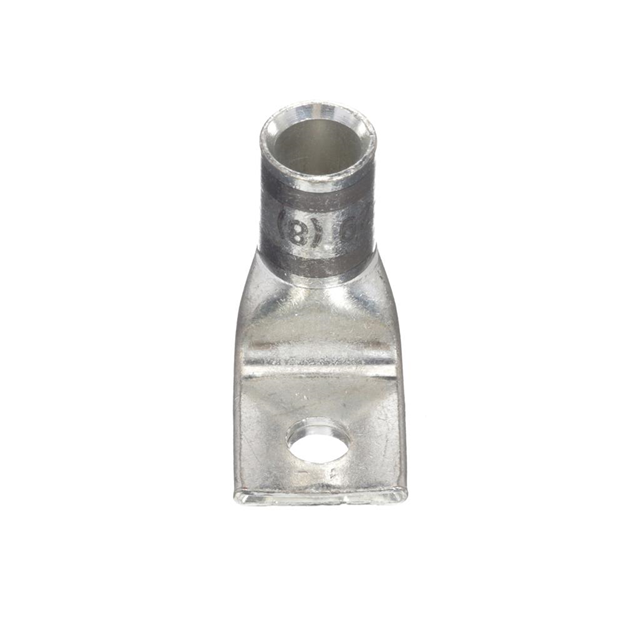

Panduit Corp LCAX4-10F-L	7.11 mm	0.28 in	5.08 mm	0.2 in	0.38 in	9.65 mm	Electro-Tin	Copper	Non-Insulated	Gray	Single Stud Hole			10 Stud	Rectangular Tongue			Barrel Crimp	4 AWG	Free Hanging (In-Line) Right Angle			0.09 in	2.29 mm	0.55 in	13.97 mm

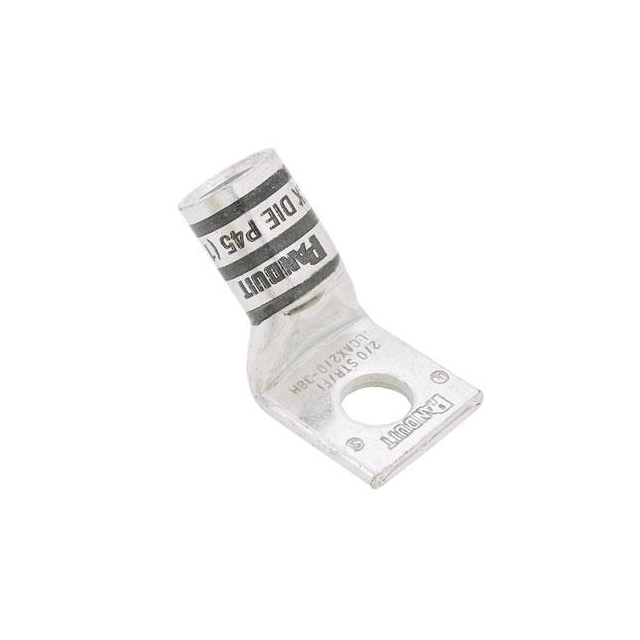

Panduit Corp LCAX450-58H-6			16.76 mm	0.66 in	1.19 in	30.23 mm	Electro-Tin	Copper	Non-Insulated	Brown	Single Stud Hole	1.7 in	43.18 mm	0.625 Stud	Rectangular Tongue	6.6 mm	0.26 in	Barrel Crimp	450 MCM (kcmil)	Free Hanging (In-Line)							0.92 in	23.37 mm

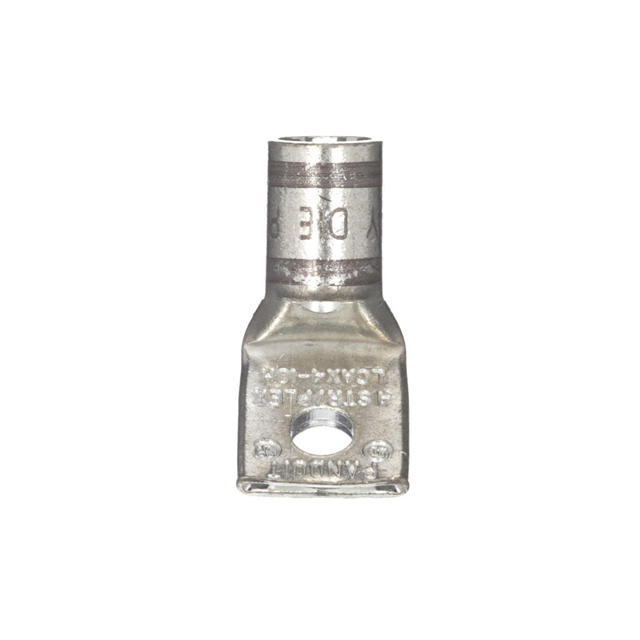

Panduit Corp LCAX4-10H-L	7.11 mm	0.28 in	5.08 mm	0.2 in	0.38 in	9.65 mm	Electro-Tin	Copper	Non-Insulated	Gray	Single Stud Hole			10 Stud	Rectangular Tongue			Barrel Crimp	4 AWG	Free Hanging (In-Line)			0.09 in	2.29 mm	0.55 in	13.97 mm

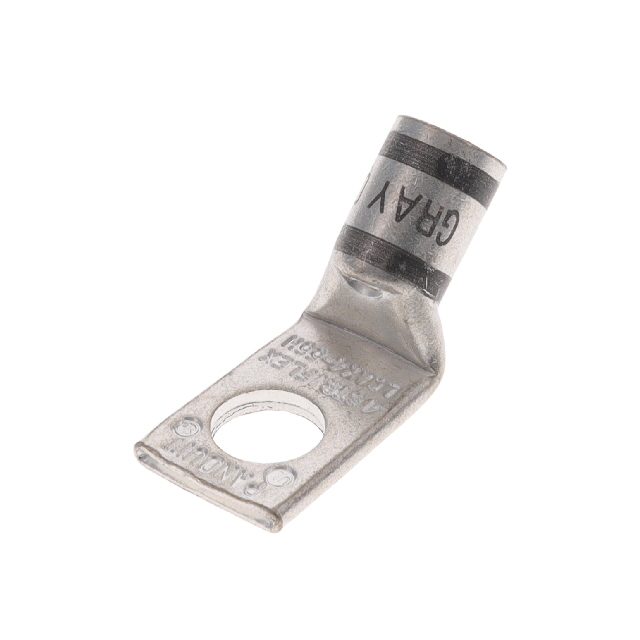

Panduit Corp LCAX4-56H-L	7.11 mm	0.28 in			0.38 in	9.65 mm	Electro-Tin	Copper	Non-Insulated	Gray	Single Stud Hole			0.3125 Stud	Rectangular Tongue			Barrel Crimp	4 AWG	Free Hanging (In-Line)			0.09 in	2.29 mm	0.55 in	13.97 mm			8.64 mm	0.34 in

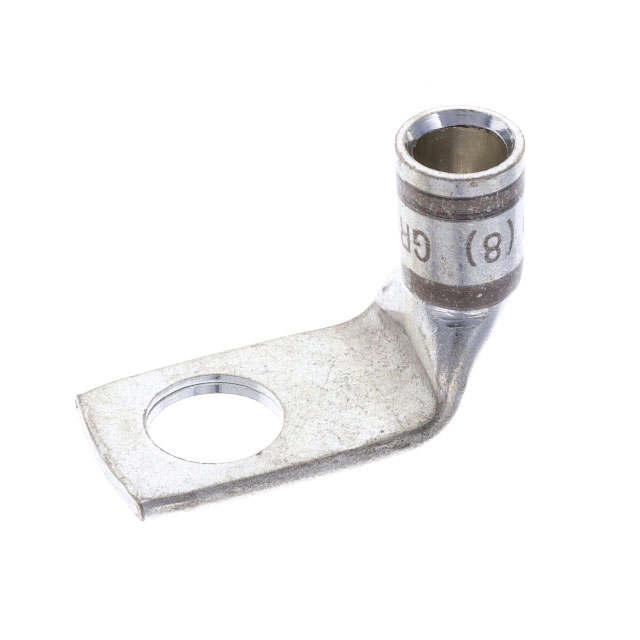

Panduit Corp LCAX4-38F-L	7.11 mm	0.28 in	10.41 mm	0.41 "	0.38 in	9.65 mm	Electro-Tin	Copper	Non-Insulated	Gray	Single Stud Hole	0.62 in	15.75 mm	0.375 Stud	Rectangular Tongue	1.78 mm	0.07 in	Barrel Crimp	4 AWG	Free Hanging (In-Line) Right Angle
Panduit Corp LCAX4-14H-L	7.11 mm	0.28 in			0.38 in	9.65 mm	Electro-Tin	Copper	Non-Insulated	Gray	Single Stud Hole			0.25 Stud	Rectangular Tongue			Barrel Crimp	4 AWG	Free Hanging (In-Line)			0.09 in	2.29 mm	0.55 in	13.97 mm				6.86 mm	0.27 in
