424J Series

Catalog

FAN AXIAL 40X28MM 24VDC WIRE

Part	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Material - Frame	Width [x]	Weight [custom]	Weight [custom]	Power (Watts)	Operating Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Approval Agency	Bearing Type	RPM	Voltage - Rated	Fan Type	Termination	Size / Dimension [x]	Size / Dimension [z]	Current Rating (Amps)	Weight	Weight	Static Pressure	Static Pressure	Features
ebm-papst Inc. 424JH	60000 Hrs	Polyamide (PA) Nylon Fiberglass Reinforced	26.4 VDC	16 VDC	0.627 m³/min	22.4 CFM	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	28 mm	0.99 lb	449.06 g	7.08 W	(-20 ~ 65°C)	-20 ░C	65 °C	54 dB	CSA UL VDE	Ball	17200 RPM	24 VDC	Tubeaxial	2 Wire Leads	40 mm	40 mm

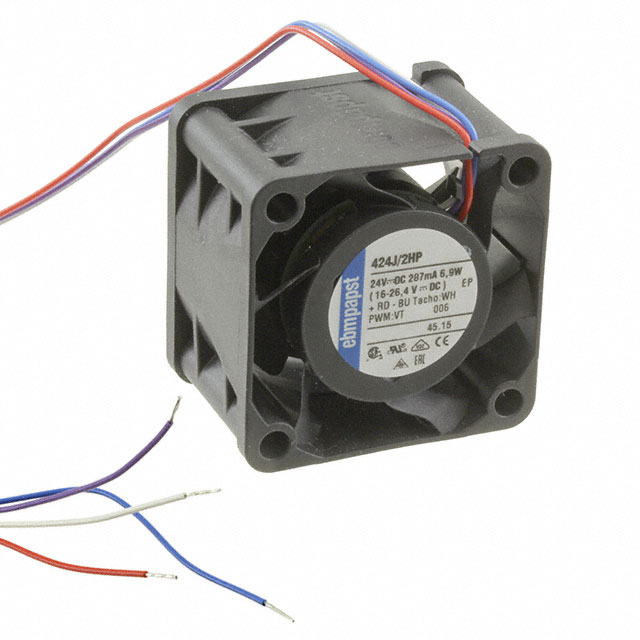

ebm-papst Inc. 424J/2HP	40 °C 60000 Hrs	Polyamide (PA) Nylon	26.4 VDC	16 VDC	0.627 m³/min	22.4 CFM		28 mm			7.2 W	(-20 ~ 65°C)	-20 ░C	65 °C	54 dB	CSA UL VDE	Ball	17200 RPM	24 VDC	Tubeaxial	4 Wire Leads	40 mm	40 mm	0.3 A	44.91 g	0.099 lb	2.129 in H2O	530.3 Pa	PWM Control Speed Sensor (Tach)
