PLN Series
Manufacturer: Bourns Inc.
Beta
⌘K

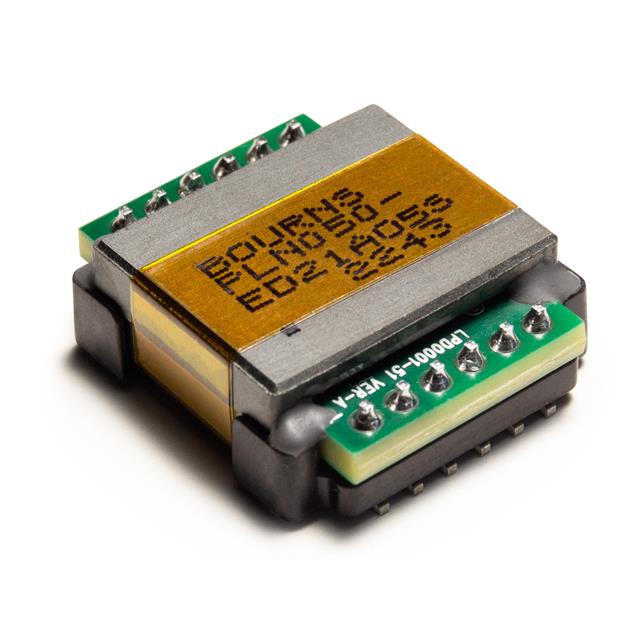

POWER TRANSFORMERS PLANAR TRANSFORMER, 70W, EED20.9, VOUT 5V
| Part | Inductance @ Frequency | Type | Frequency | Height - Seated (Max) | Height - Seated (Max) [Max] | Style | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Applications | Mounting Type | Voltage - Auxiliary | Voltage - Primary [Max] | Voltage - Primary [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 kHz 150 µH | For DC/DC Converters | 250 kHz | 9.8 mm | 0.386 in | Planar | 1.024 in | 0.969 in | 26 mm | 24.6 mm | Power over Ethernet (PoE) | Surface Mount | 12 V | 57 V | 33 V | 125 °C | -40 C | 1750 V |
