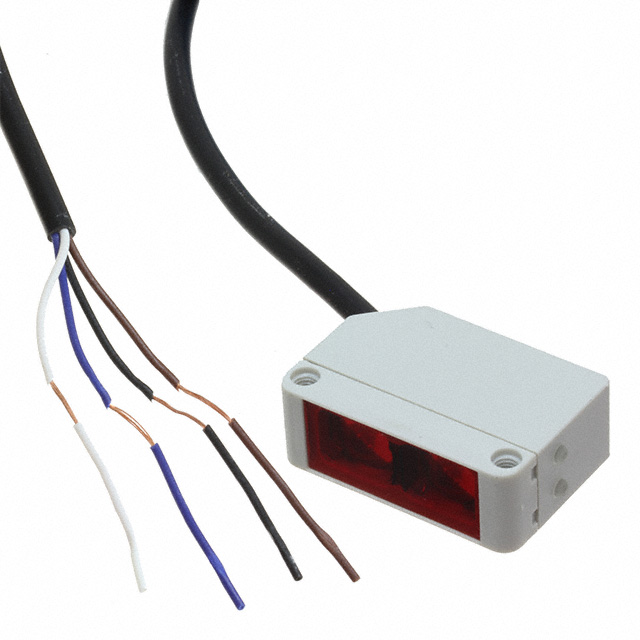

PD30 Series
Manufacturer: Carlo Gavazzi Inc.
Beta
⌘K
PHOTOELECTRIC SENSORS DIFFUSE-REFLECTIVE PHOTOELECTRIC SENSOR WITH ADJUSTABLE BACKGROUND SUPPRESSION, RANGE: 0-200MM, POLARITY FREE INFRARED LIGHT 850NM, POWER SUPPLY 10-30VDC, NPN OUTPUT, N.O. AND N.C., LIGHT AND DARK SWITCHING, CABLE CONNECTION, 10X30X20MM HOUSING
| Part | Output Configuration | Sensing Method | Adjustment Type | Light Source | Light Source | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Cable Length | Cable Length | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Distance | Sensing Distance | Response Time | Connection Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carlo Gavazzi Inc. | NPN | Diffuse Reflective | 210° Turn Potentiometer Adjustable | 850 nm | Infrared | IP67 IEC 60529 | -25 °C | 60 °C | 78.74 " | 2 m | 10 VDC | 30 VDC | 200 mm | 7.874 in | 1 ms | Cable |
 Carlo Gavazzi Inc. | NPN | Diffuse Reflective | 210° Turn Potentiometer Adjustable | Red (625nm) | IP67 IEC 60529 | -25 °C | 60 °C | 78.74 " | 2 m | 10 VDC | 30 VDC | 1 m | 39.37 in | 500 µs | Cable | |
 Carlo Gavazzi Inc. | NPN | Polarized Retroreflective | Adjustable Potentiometer | 850 nm | Infrared | IP68 IP69K | -25 °C | 60 °C | 10 VDC | 30 VDC | 6 m | 236.2 in | 500 µs | Connector | ||
 Carlo Gavazzi Inc. | PNP | Through-Beam | Adjustable Potentiometer | 850 nm | Infrared | IP68 IP69K | -25 °C | 60 °C | 10 VDC | 30 VDC | 15 m | 590.551 in | 1 ms | Connector | ||
 Carlo Gavazzi Inc. | NPN | Retroreflective | Teaching Method | Red (660nm) | IP67 IEC 60529 | -25 °C | 55 °C | 78.74 " | 2 m | 10 VDC | 30 VDC | 6 m | 236.22 " | 500 µs | Cable | |
Carlo Gavazzi Inc. | PNP | Reflective | Adjustable Potentiometer | Infrared (617nm) | IP68 IP69K | -25 °C | 60 °C | 10 VDC | 30 VDC | 200 mm | 7.874 in | 1 ms | Connector | |||
Carlo Gavazzi Inc. | PNP | Diffuse Reflective | Adjustable | Infrared (660nm) | IP67 | -25 °C | 55 °C | 10 VDC | 30 VDC | 15 cm | 5.906 " | 500 µs | Connector | |||
Carlo Gavazzi Inc. | PNP | Polarized Retroreflective | Adjustable Potentiometer | 850 nm | Infrared | IP68 IP69K | -25 °C | 60 °C | 78.74 " | 2 m | 10 VDC | 30 VDC | 6 m | 236.2 in | 500 µs | Cable |
 Carlo Gavazzi Inc. | PNP | Diffuse Reflective | Adjustable | Red (660nm) | IP67 | -25 °C | 55 °C | 10 VDC | 30 VDC | 1 m | 39.37 in | 500 µs | Cable | |||
 Carlo Gavazzi Inc. | PNP | Through-Beam | Adjustable | Infrared (880nm) | IP67 | -25 °C | 55 °C | 10 VDC | 30 VDC | 15 m | 590.551 in | 500 µs | Connector |
