009175 Series

Catalog

CONN WIRE IDC 3POS 26AWG SMD RA

Part	Number of Positions Loaded	Connector Type	Mounting Type	Number of Rows	Color	Cable Termination	Features	Cable Pitch	Cable Pitch	Wire Gauge	Contact Finish	Board-Side Pitch	Board-Side Pitch	Number of Positions	Wire Gauge

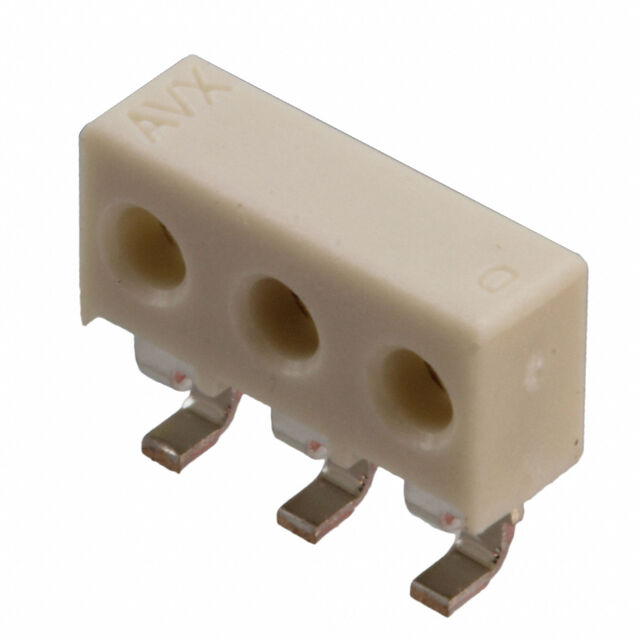

KYOCERA AVX 009175003702996	All	Individual Wires	Right Angle Surface Mount	1	White	IDC	Closed End	0.098 in	2.5 mm	26 AWG	Tin	2.5 mm	0.098 in
KYOCERA AVX 009175003702906	All	Individual Wires	Right Angle Surface Mount	1	White	IDC	Feed Through	0.098 in	2.5 mm	26 AWG	Tin	2.5 mm	0.098 in

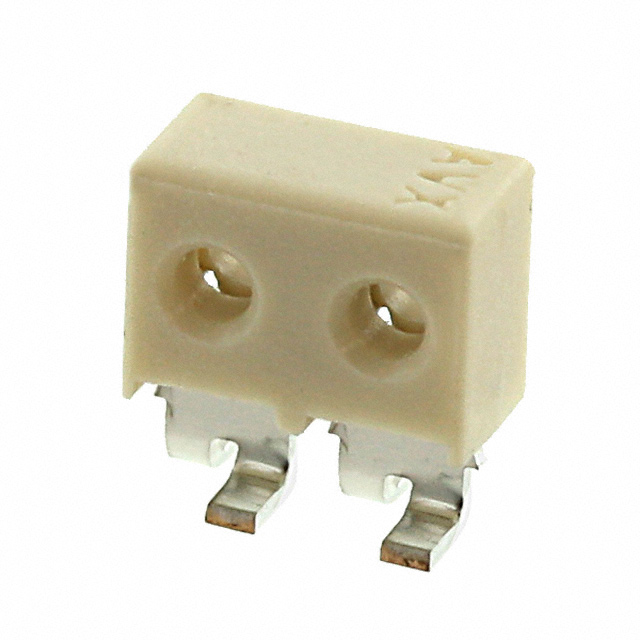

KYOCERA AVX 009175002701106	All	Individual Wires	Surface Mount	1	White	IDC	Feed Through	0.098 in	2.5 mm	28 AWG	Tin	2.5 mm	0.098 in	2	Stranded or Solid
KYOCERA AVX 009175002702906	All	Individual Wires	Right Angle Surface Mount	1	White	IDC	Feed Through	0.098 in	2.5 mm	26 AWG	Tin	2.5 mm	0.098 in	2

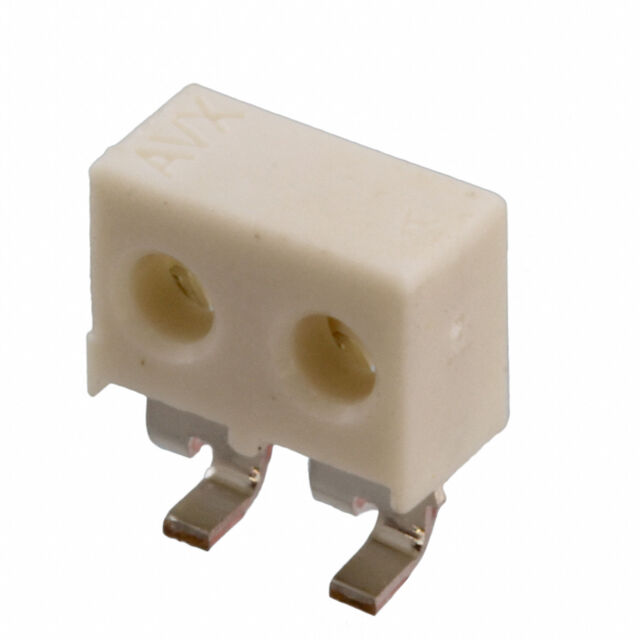

KYOCERA AVX 009175002702996	All	Individual Wires	Right Angle Surface Mount	1	White	IDC	Closed End	0.098 in	2.5 mm	26 AWG	Tin	2.5 mm	0.098 in	2
