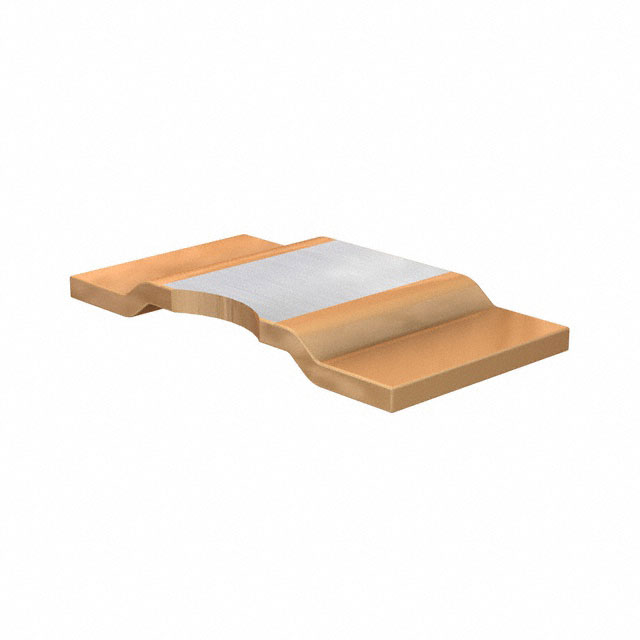

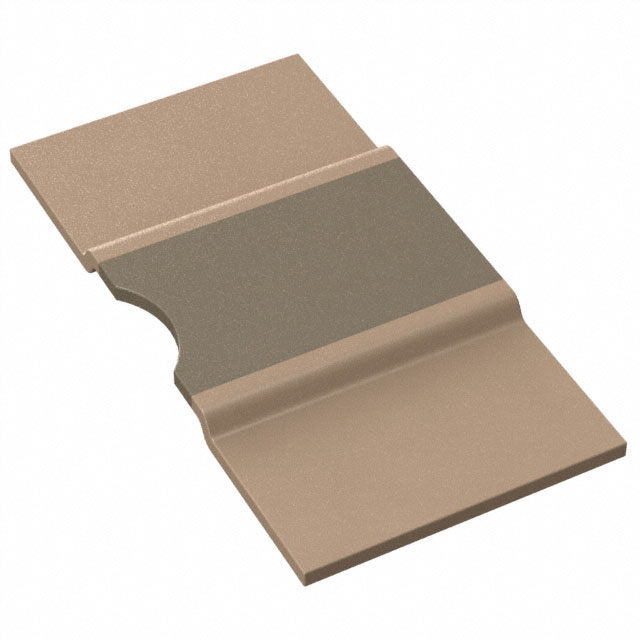

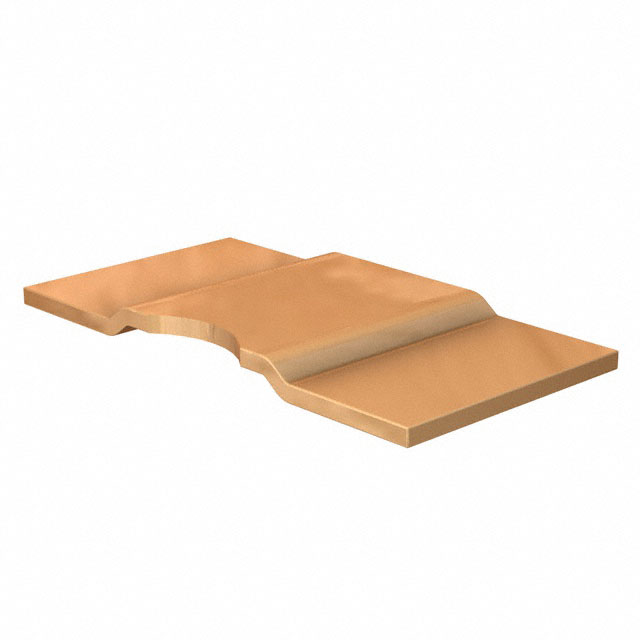

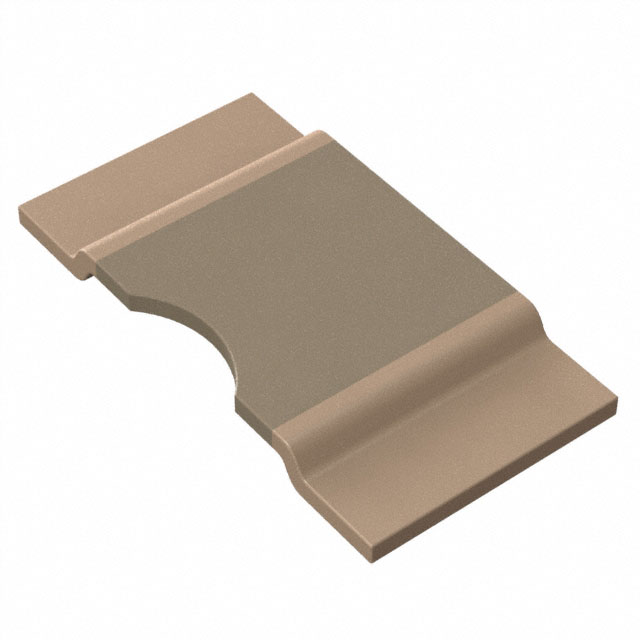

PU Series
Manufacturer: YAGEO
Beta
⌘K
CURRENT SENSE RESISTORS - SMD 500 UOHMS 9 WATT 1 % 75 PPM/C AEC-Q200
| Part | Ratings | Package / Case | Power (Watts) | Resistance | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Number of Terminations [custom] | Composition | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Tolerance | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | AEC-Q200 | Nonstandard | 9 W | 0.5 mOhms | 75 ppm/°C | 5.2 mm | 10 mm | 0.394 in | 0.205 " | 2 | Metal Element | 0.064 in | 1.62 mm | -65 ░C | 170 °C | Automotive AEC-Q200 Current Sense Moisture Resistant | 1 % | |
 YAGEO | Nonstandard | 5 W | 0.5 mOhms | 175 ppm/°C | 7.75 mm | 15 mm | 0.591 in | 0.305 in | 2 | Metal Element | 0.054 in | 1.36 mm | -65 ░C | 170 °C | Automotive AEC-Q200 Current Sense Moisture Resistant | 5 % | ||
 YAGEO | AEC-Q200 | Nonstandard | 7 W | 1 mOhms | 75 ppm/°C | 7.75 mm | 15 mm | 0.591 in | 0.305 in | 2 | Metal Element | -65 ░C | 170 °C | Automotive AEC-Q200 Current Sense Moisture Resistant | 1 % | |||
 YAGEO | AEC-Q200 | Nonstandard | 7 W | 0.2 mOhms | 225 ppm/°C | 7.75 mm | 15 mm | 0.591 in | 0.305 in | 2 | Metal Element | 0.082 in | -65 ░C | 170 °C | Automotive AEC-Q200 Current Sense Moisture Resistant | 1 % | 2.09 mm | |
 YAGEO | AEC-Q200 | Nonstandard | 9 W | 0.2 mOhms | 325 ppm/°C | 5.2 mm | 10 mm | 0.394 in | 0.205 " | 2 | Metal Element | 0.083 in | 2.11 mm | -65 ░C | 170 °C | Automotive AEC-Q200 Current Sense Moisture Resistant | 1 % | |
YAGEO | AEC-Q200 | Nonstandard | 9 W | 1 mOhms | 75 ppm/°C | 5.2 mm | 10 mm | 0.394 in | 0.205 " | 2 | Metal Element | -65 ░C | 170 °C | Automotive AEC-Q200 Current Sense Moisture Resistant | 1 % |
