TLP2363 Series

Catalog

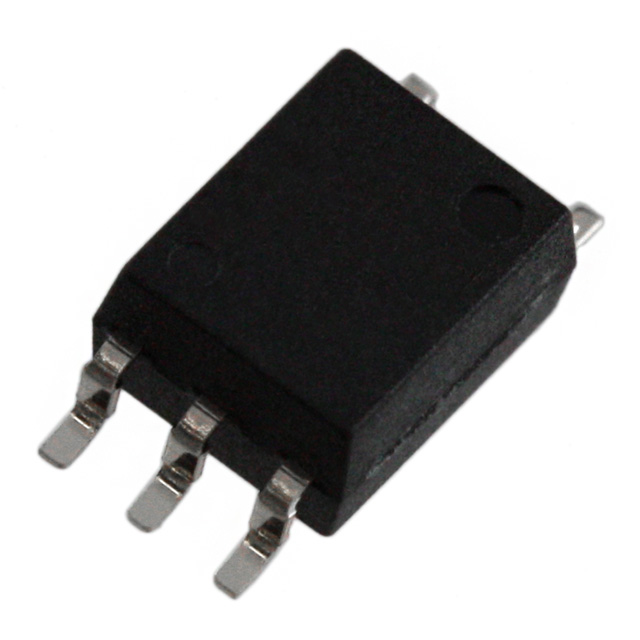

OPTOCOUPLER LOGIC-OUT OPEN COLLECTOR LOGIC, INVERTER-IN 1-CH 5-PIN SO T/R

Part	Current - DC Forward (If) (Max) [Max]	Mounting Type	Common Mode Transient Immunity (Min) [Min]	Input Type	Data Rate	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Supplier Device Package	Output Type	Voltage - Isolation	Inputs - Side 1/Side 2 [custom]	Package / Case	Package / Case	Number of Channels [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Typ)	Current - Output / Channel
Toshiba Semiconductor and Storage TLP2363(TPR,E	25 mA	Surface Mount	20 kV/µs	DC	10 Mbps	23 ns	7 ns	6-SO	5 Lead	Open Collector	3750 Vrms	1	5 Leads 6-SOIC	0.179 in 4.55 mm	1	5.5 V	2.7 V	-40 C	105 ░C	1.5 V	25 mA
Toshiba Semiconductor and Storage TLP2363(V4-TPL,E	25 mA	Surface Mount	20 kV/µs	DC	10 Mbps	23 ns	7 ns	6-SO	5 Lead	Open Collector	3750 Vrms	1	5 Leads 6-SOIC	0.179 in 4.55 mm	1	5.5 V	2.7 V	-40 C	105 ░C	1.5 V	25 mA
Toshiba Semiconductor and Storage TLP2363(V4,E	25 mA	Surface Mount	20 kV/µs	DC	10 Mbps	23 ns	7 ns	6-SO	5 Lead	Open Collector	3750 Vrms	1	5 Leads 6-SOIC	0.179 in 4.55 mm	1	5.5 V	2.7 V	-40 C	105 ░C	1.5 V	25 mA
Toshiba Semiconductor and Storage TLP2363(TPL,E	25 mA	Surface Mount	20 kV/µs	DC	10 Mbps	23 ns	7 ns	6-SO	5 Lead	Open Collector	3750 Vrms	1	5 Leads 6-SOIC	0.179 in 4.55 mm	1	5.5 V	2.7 V	-40 C	105 ░C	1.5 V	25 mA
Toshiba Semiconductor and Storage TLP2363(E	25 mA	Surface Mount	20 kV/µs	DC	10 Mbps	23 ns	7 ns	6-SO	5 Lead	Open Collector	3750 Vrms	1	5 Leads 6-SOIC	0.179 in 4.55 mm	1	5.5 V	2.7 V	-40 C	105 ░C	1.5 V	25 mA
