DC3C Series

Catalog

MICROSWITCH, SNAP ACTION, ROLLER LEVER, SPDT, WIRE LEADED, 100 MA, 30 VDC

Part	Pretravel	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Operating Position	Operating Position	Circuit	Voltage Rating - AC	Ingress Protection	Switch Function	Differential Travel	Differential Travel	Electrical Life	Mounting Type	Actuator Type	Termination Style	Operating Force	Overtravel [custom]	Overtravel [custom]	Current Rating (Amps)	Pretravel

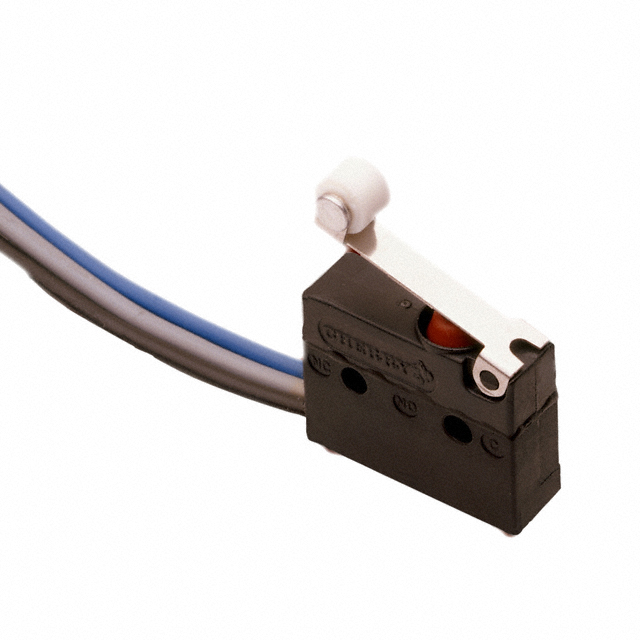

ZF Electronics DC3CM5RB	4.6 mm	0.18 in	-40 C	105 ░C	1000000 Cycles	0.6 in	15.2 mm	SPDT	125 V	IP67 - Dust Tight Waterproof	On-Mom	0.5 mm	0.02 in	100000 Cycles	Chassis Mount	Lever Roller	Wire Leads	92 gf	0.06 "	1.5 mm	100 mA
ZF Electronics DC3C-A1RC	5 mm	0.197 "	-40 C	120 °C	1000000 Cycles	0.638 in	16.2 mm	SPDT	125 V	IP67 - Dust Tight Waterproof	On-Mom	0.6 mm	0.025 in	100000 Cycles	Chassis Mount	Lever Roller	Solder Lug	82 gf	0.06 "	1.5 mm	100 mA

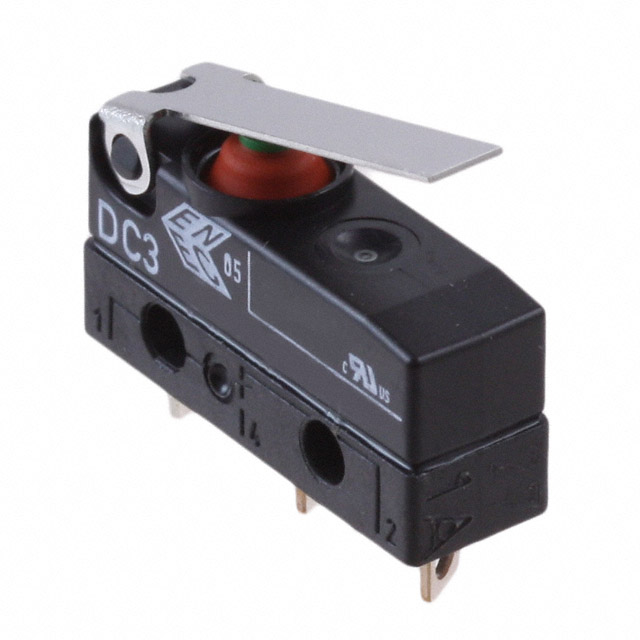

ZF Electronics DC3C-A1LB	0.178 in		-40 C	120 °C	1000000 Cycles			SPDT	125 V	IP67 - Dust Tight Waterproof	On-Mom	0.8 mm	0.031 in	100000 Cycles	Chassis Mount	Lever Straight	Solder Lug	82 gf	0.06 "	1.5 mm	100 mA	4.5 mm
ZF Electronics DC3C-A1AA	1 mm	0.04 in	-40 C	120 °C	1000000 Cycles	0.33 in	8.4 mm	SPDT	125 V	IP67 - Dust Tight Waterproof	On-Mom	0.1 mm	0.004 in	100000 Cycles	Chassis Mount	Round (Pin Plunger)	Solder Lug	204 gf	0.025 in	0.6 mm	100 mA
