618J Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

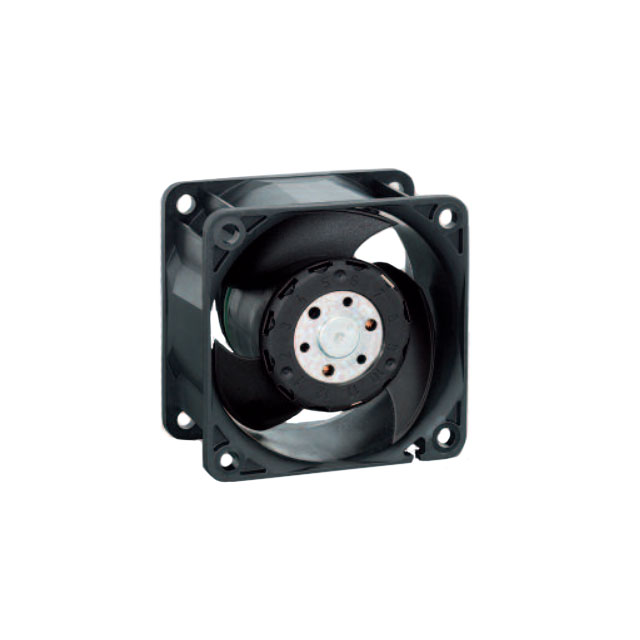

FAN AXIAL 60X32MM 48VDC WIRE
| Part | Material - Frame | Material - Blade | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Bearing Type | Fan Type | RPM | Air Flow | Air Flow | Noise | Approval Agency | Weight [custom] | Weight [custom] | Power (Watts) | Termination | Width [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 57500 Hrs | 36 VDC | 56 VDC | -20 ░C | 70 °C | Ball | Tubeaxial | 11700 RPM | 1.15 m³/min | 41.2 CFM | 53 dB | CE | 100.7 g | 0.222 lb | 7.7 W | 2 Wire Leads | 32 mm | 60 mm | 60 mm | 48 VDC |
