1379165 Series

Catalog

4POS MQS .63 HEADER 180DEG THR

Part	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Features	Overall Contact Length	Overall Contact Length	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Current Rating (Amps)	Contact Shape	Number of Rows	Voltage Rating	Shrouding	Connector Type	Mounting Type	Fastening Type	Termination	Style	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Insulation Material
TE Connectivity AMP Connectors 1379165-1	Male Pin	0.142 in	3.6 mm	0.736 in	18.69 mm	5.9 mm	0.232 in	Copper Alloy	0.1 "	2.54 mm	Board Lock	0.512 in	13 mm	Black	85 °C	-40 C	4	7.5 A	Square	1	12 VDC	Shrouded - 4 Wall	Header	Through Hole	Push-Pull	Solder	Board to Cable/Wire	All

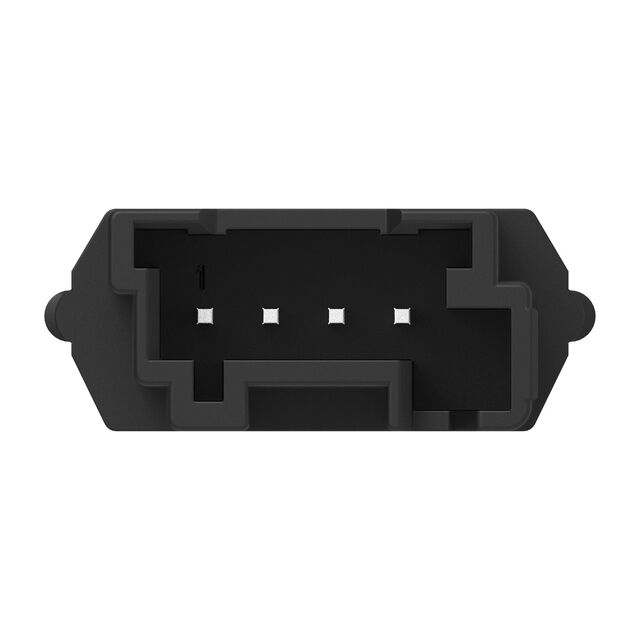

TE Connectivity AMP Connectors 1379165-7	Male Pin					5.9 mm	0.232 in	Copper Alloy	0.1 "	2.54 mm	Board Lock			Black	85 °C	-40 C	4		Square	1	12 VDC	Shrouded - 4 Wall	Header	Through Hole	Push-Pull	Solder	Board to Cable/Wire	All	3.81 mm	0.15 in	UL94 HB	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled
TE Connectivity AMP Connectors 1-1379165-6
TE Connectivity AMP Connectors 1379165-3	Male Pin	0.142 in	3.6 mm	0.736 in	18.69 mm	5.9 mm	0.232 in	Copper Tin	0.1 "	2.54 mm	Board Lock	0.512 in	13 mm	Blue	85 °C	-40 C	4		Square	1	12 VDC	Shrouded - 4 Wall	Header	Through Hole	Push-Pull	Solder	Board to Cable/Wire	All			UL94 HB	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled
TE Connectivity AMP Connectors 1-1379165-5
