9A0612 Series

Catalog

FAN AXIAL 60X25MM 12VDC WIRE

Part	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	RPM	Weight	Weight	Features	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Termination	Voltage - Rated	Static Pressure	Static Pressure	Noise	Approval Agency	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Width [y]	Power (Watts)	Weight [custom]	Weight [custom]	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 9A0612S4D01	40000 Hrs	0.17 A	Plastic	Plastic	13.8 VDC	6 VDC	4600 RPM	0.176 lb	80 g	Locked Rotor Sensor	60 mm	60 mm	23 CFM	0.644 m³/min	3 Wire Leads	12 VDC	0.228 in H2O	56.8 Pa	33 dB(A)	CSA TUV UL	Tubeaxial	-20 ░C	70 °C	Ball	25 mm
Sanyo Denki America Inc. 9A0612M4021	40000 Hrs	60 mA	Plastic	Plastic	13.8 VDC	7 V	2600 RPM	0.176 lb	80 g		60 mm	60 mm			2 Wire Leads	12 VDC	0.079 in H2O	19.6 Pa	20 dB	CSA TUV UL	Tubeaxial	-20 ░C	70 °C	Ball	25 mm	720 mW
Sanyo Denki America Inc. 9A0612F4021	40000 Hrs	0.09 A	Plastic	Plastic	13.8 VDC	6 VDC	3200 RPM				60 mm	60 mm	15.5 CFM	0.434 m³/min	2 Wire Leads	12 VDC	0.118 in H2O	29.4 Pa	24 dB	CSA TUV UL	Tubeaxial	-20 ░C	70 °C	Ball	25 mm	1.08 W	0.177 lb	80.29 g
Sanyo Denki America Inc. 9A0612G4021		0.24 A	Plastic	Plastic			5600 RPM	0.176 lb	80 g		60 mm	60 mm	27.6 CFM	0.773 mł/min	2 Wire Leads	12 VDC	0.351 in H2O	87.3 Pa	39 dB(A)	CSA TUV UL	Tubeaxial	-20 ░C	60 °C	Ball	25 mm	2.88 W			60 °C	-4 °F
Sanyo Denki America Inc. 9A0612G4D01		0.24 A	Plastic	Plastic			5600 RPM	0.176 lb	80 g	Locked Rotor Sensor	60 mm	60 mm	27.6 CFM	0.773 mł/min	3 Wire Leads	12 VDC	0.351 in H2O	87.3 Pa	39 dB(A)	CSA TUV UL	Tubeaxial	-20 ░C	60 °C	Ball	25 mm	2.88 W			60 °C	-4 °F
Sanyo Denki America Inc. 9A0612S4D011	40000 Hrs	0.17 A	Plastic	Plastic	13.8 VDC	6 VDC	4600 RPM	0.176 lb	80 g	Locked Rotor Sensor	60 mm	60 mm	23 CFM	0.644 m³/min	3 Wire Leads	12 VDC	0.228 in H2O	56.8 Pa	33 dB(A)	CSA TUV UL	Tubeaxial	-20 ░C	70 °C	Ball	25 mm

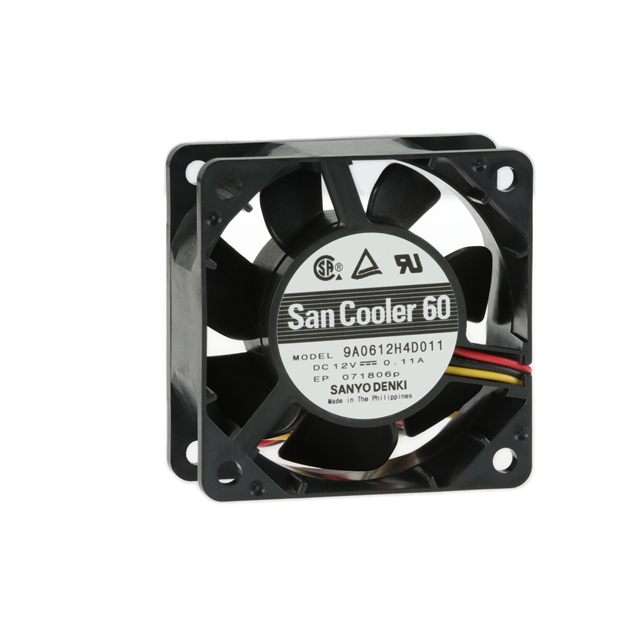

Sanyo Denki America Inc. 9A0612H4D011	40000 Hrs	110 mA	Plastic	Plastic	13.8 VDC	6 VDC	3800 RPM	0.176 lb	80 g	Locked Rotor Sensor	60 mm	60 mm	18.7 CFM	0.524 mł/min	3 Wire Leads	12 VDC			28 dB	CSA TUV UL	Tubeaxial	-20 ░C	70 °C	Ball	25 mm	1.32 W
Sanyo Denki America Inc. 9A0612S401	40000 Hrs	0.17 A	Plastic	Plastic	13.8 VDC	6 VDC	4600 RPM	0.176 lb	80 g	Locked Rotor Protection Speed Sensor (Tach)	60 mm	60 mm	23 CFM	0.644 m³/min	3 Wire Leads	12 VDC	0.228 in H2O	56.8 Pa	33 dB(A)	CSA TUV UL	Tubeaxial	-20 ░C	70 °C	Ball	25 mm
Sanyo Denki America Inc. 9A0612H4011	40000 Hrs	110 mA	Plastic	Plastic	13.8 VDC	6 VDC	3800 RPM	0.176 lb	80 g	Locked Rotor Protection Speed Sensor (Tach)	60 mm	60 mm	18.7 CFM	0.524 mł/min	3 Wire Leads	12 VDC			28 dB	CSA TUV UL	Tubeaxial	-20 ░C	70 °C	Ball	25 mm	1.32 W
Sanyo Denki America Inc. 9A0612F4011	40000 Hrs	0.09 A	Plastic	Plastic	13.8 VDC	6 VDC	3200 RPM	0.176 lb	80 g	Locked Rotor Protection Speed Sensor (Tach)	60 mm	60 mm	15.5 CFM	0.434 m³/min	3 Wire Leads	12 VDC	0.118 in H2O	29.4 Pa	24 dB	CSA TUV UL	Tubeaxial	-20 ░C	70 °C	Ball	25 mm	1.08 W
