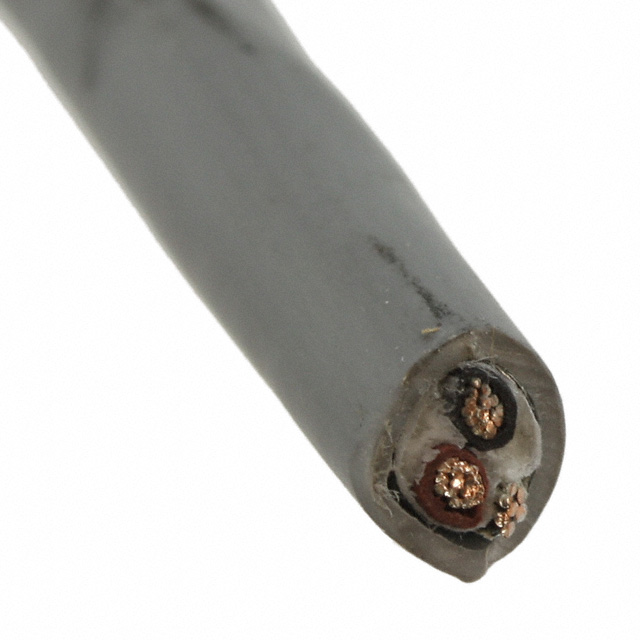

77124 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 2COND 18AWG SHLD 1000'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Conductor Insulation | Jacket Color | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Cable Type | Wire Gauge | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Features | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 0.813 mm | 0.032 in | Foil | Polyphenylene Ether Modified (mPPE) | Slate | ISO 10993 | 16 | 30 AWG | Copper Tinned | Multi-Conductor | 18 AWG | 2 | 0.206 in | 5.23 mm | 600 V | -50 °C | 105 ░C | 304.8 m | 1000 ft | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | ||
ALPHA WIRE | 100 % | Aluminum | 0.813 mm | 0.032 in | Foil | Polyphenylene Ether Modified (mPPE) | Slate | ISO 10993 | 16 | 30 AWG | Copper Tinned | Multi-Conductor | 18 AWG | 2 | 0.206 in | 5.23 mm | 600 V | -50 °C | 105 ░C | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | 100 ft | 30.5 m |
