170003 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

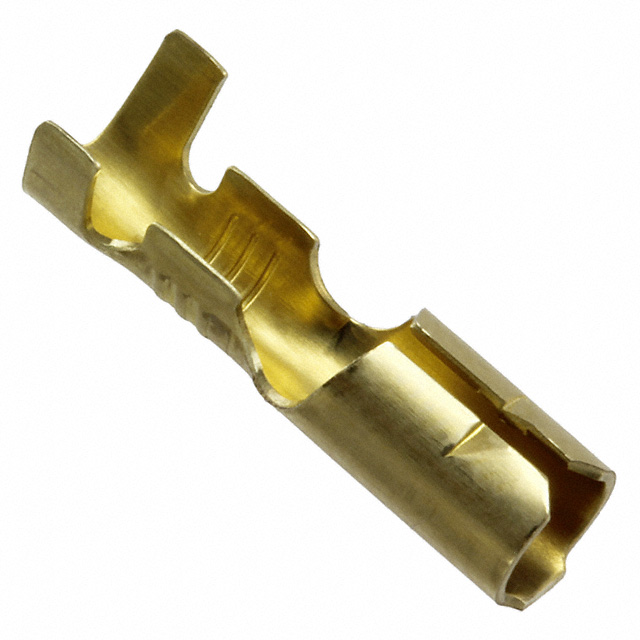

SHUR PLUG RECP ROHS COMPLIANT: YES
| Part | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Diameter - Barrel [diameter] | Diameter - Barrel [diameter] | Terminal Type | Contact Finish | Length - Barrel [x] | Length - Barrel [x] | Termination | Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 3.81 mm | 2.5 mm | 0.098 in | 0.15 " | 3.96 mm | 0.156 in | Female Receptacle (Socket) | Tin | 6.4 mm | 0.252 in | Crimp | Non-Insulated | 14 AWG | 20 AWG | Brass |
